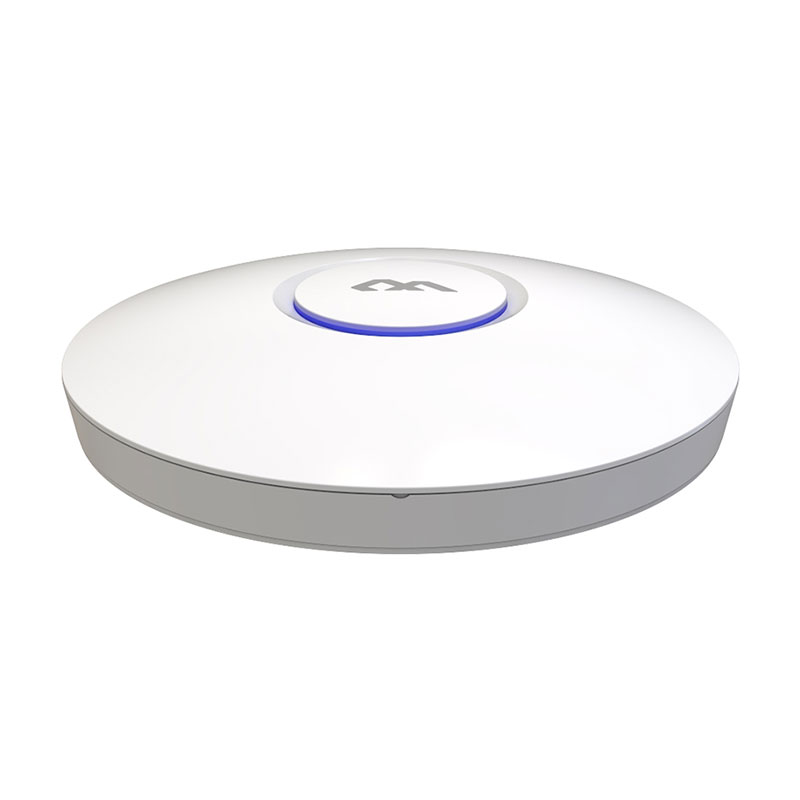

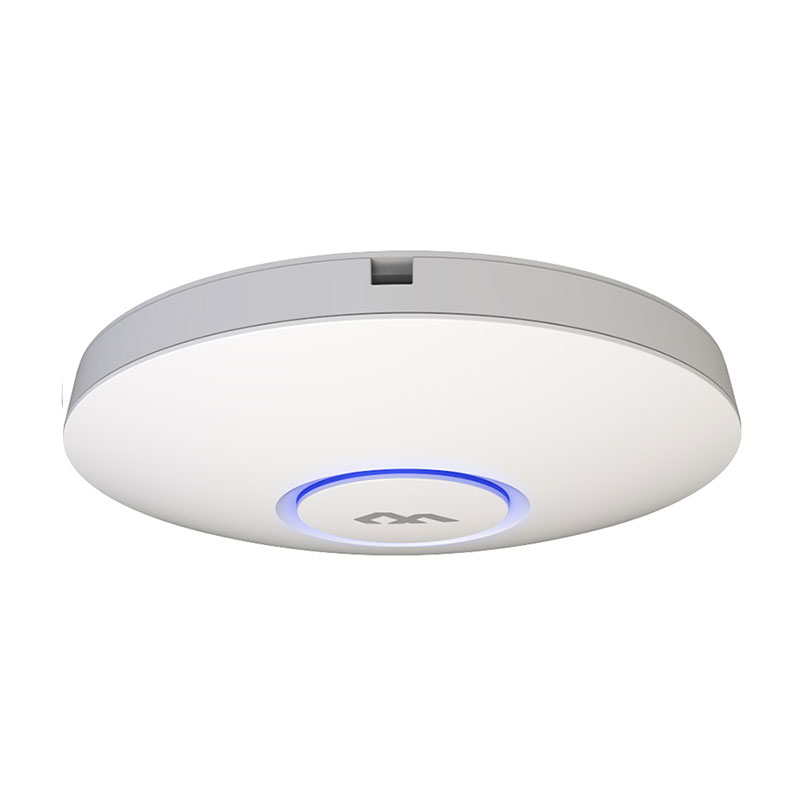

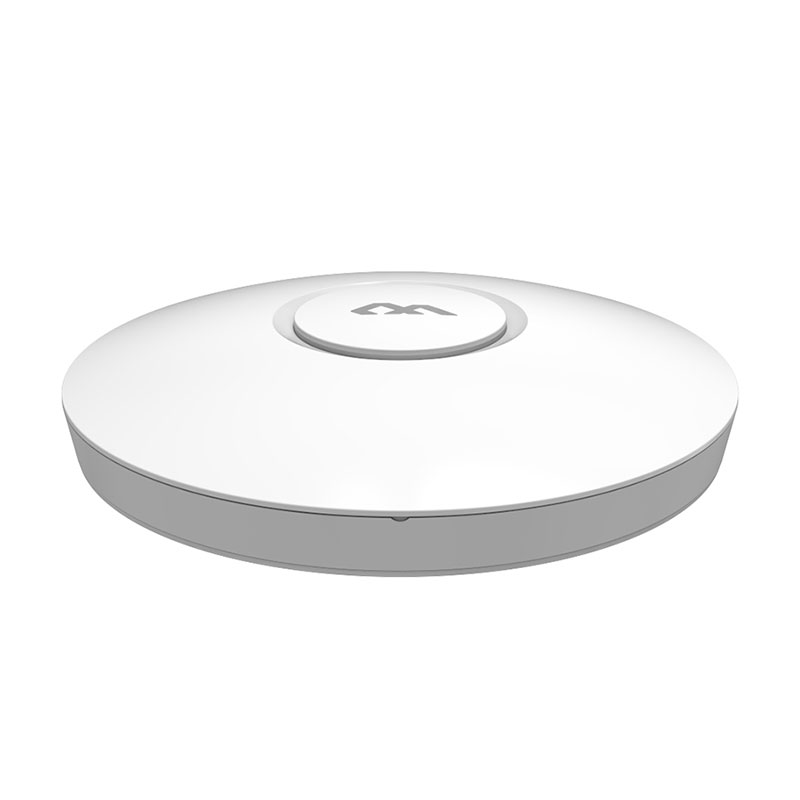

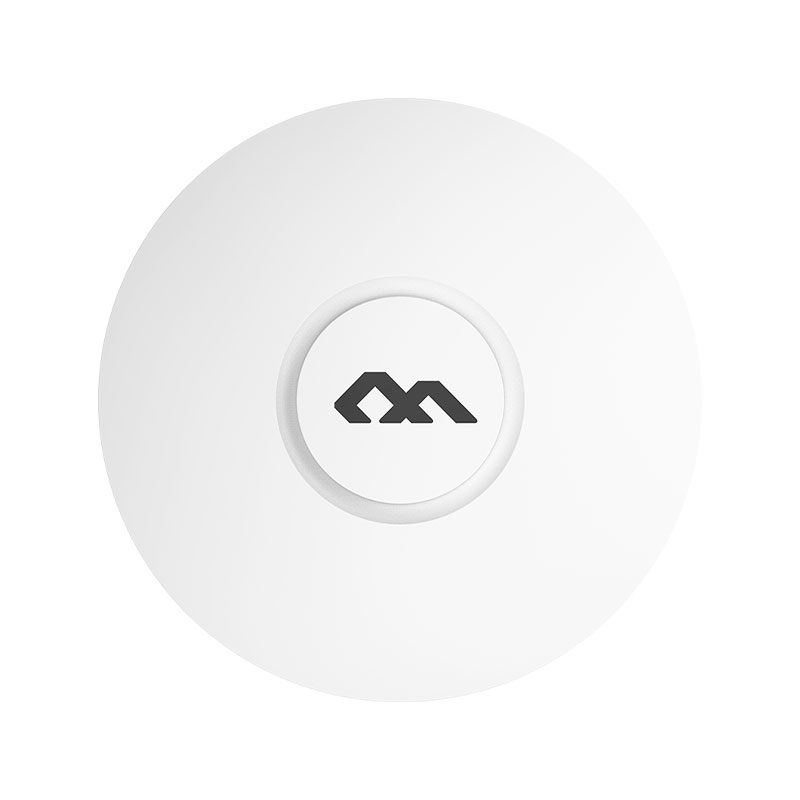

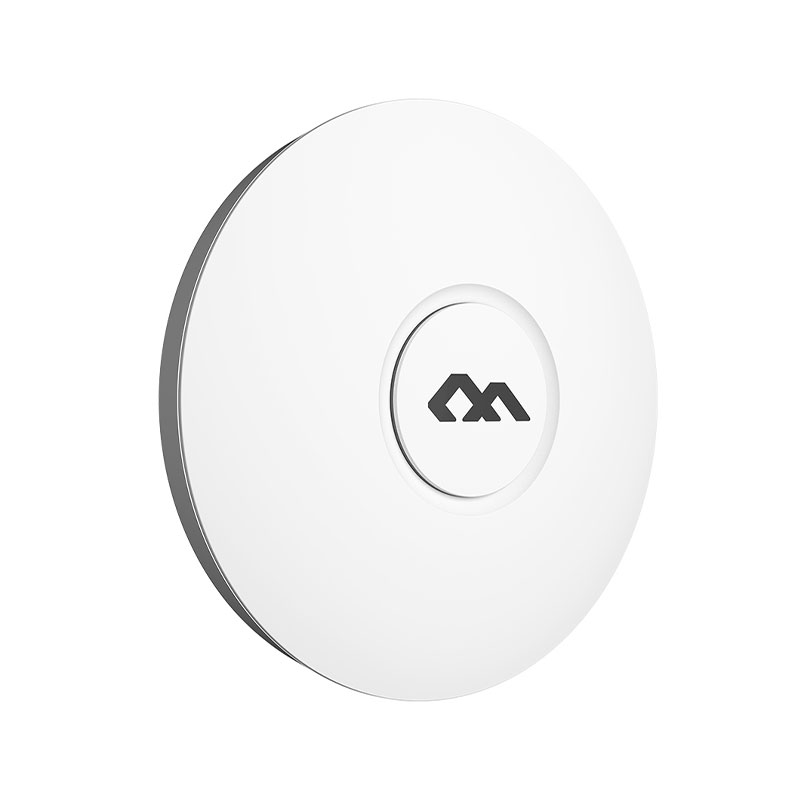

CF-E320N V2.0 300Mbps High Power Wireless Wall-mounted Ceiling AP

  • Model: CF-E320N V2.0
  • Power Consumption: <8W
  • IP Index: IP41
  • MTBF: ＞250000H
  • Installation Way: Ceiling-mounted/Wall-mounted

Specifications:

  • Hardware Specification: Chipset: QCA9531; DDR: 64MB; Flash: 16MB
  • Antenna: Built in 2*3dBi Antenna
  • Transmission Rate: 2.4GHz: 574Mbps; 5GHz: 2400Mbps
  • Wireless Standard: IEEE802.11b/g/n
  • RF Parameters:
  • Output Power (Max): 80mW (19dBm);
  • Receiving Sensitivity (Min): -96dBm;
  • Frequency: 2.4GHz-2.4835GHz
  • Modulation Mode
  • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps;
  • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps;
  • MIMO-OFDM: MCS 0-15
  • Transmission Rate:
  • 11b: 1, 2, 5.5, 11Mbps;
  • 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;
  • 11n: MCS0-MCS15(20MHz and 40MHz Analog Bandwidth);
  • 20MHz: 144.4Mbps;
  • 40MHz: 300Mbps

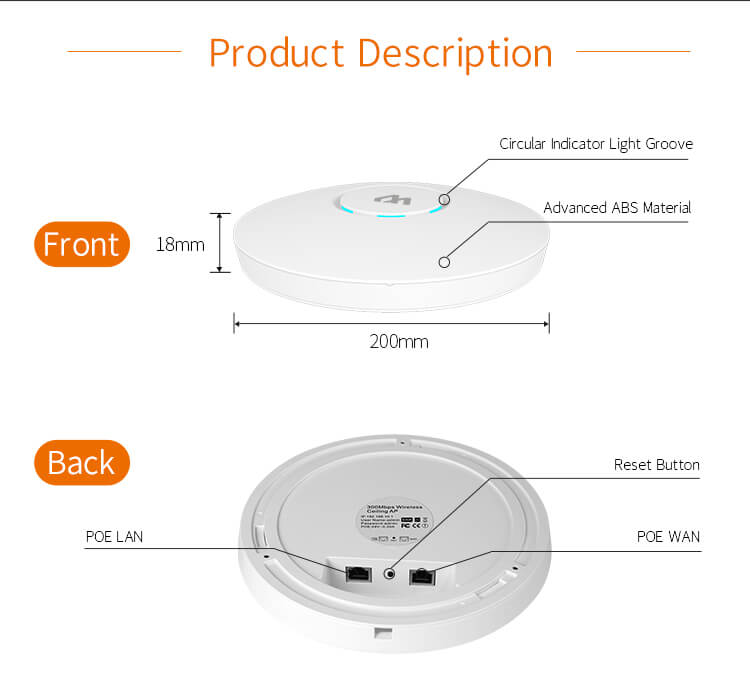

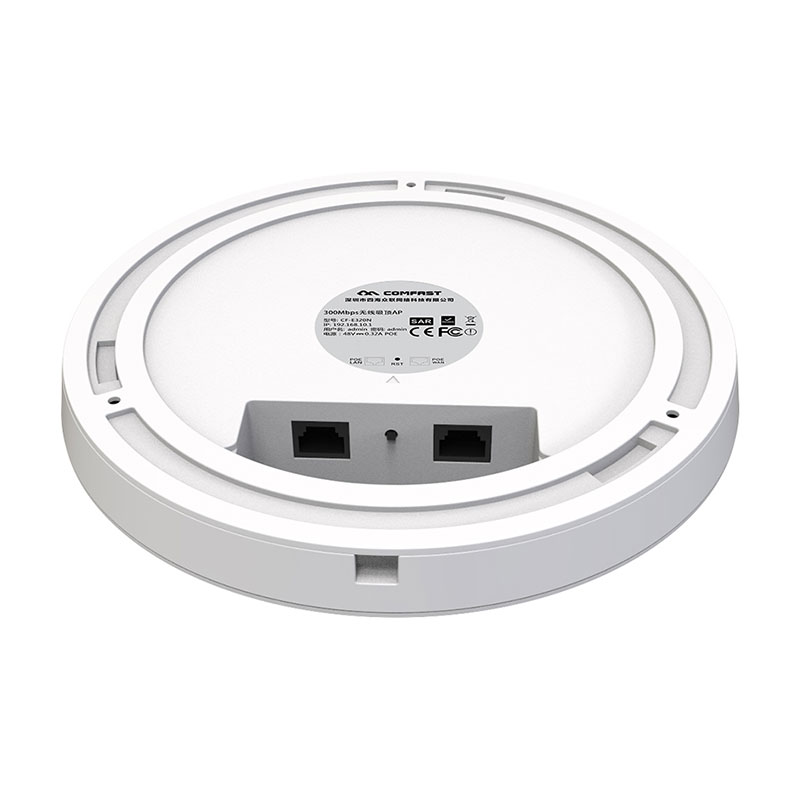

  • Physical Ports:
  • 1* 10/100Mbps WAN RJ45 Ethernet Port; Support POE Power Supply;
  • 1* 10/100Mbps LAN RJ45 Ethernet Port; Support POE Power Supply;
  • 1* RESET / WPS Button
  • Indicator: Three Color Indicator
  • Power:
  • Power Supply: 802.3af/802.3at POE Power Supply(0-100m);
  • Power Adapter: 48V 0.32A POE Power Adapter(Configured)
  • Power Consumption: <8W
  • IP Index: IP41
  • MTBF: ＞250000H

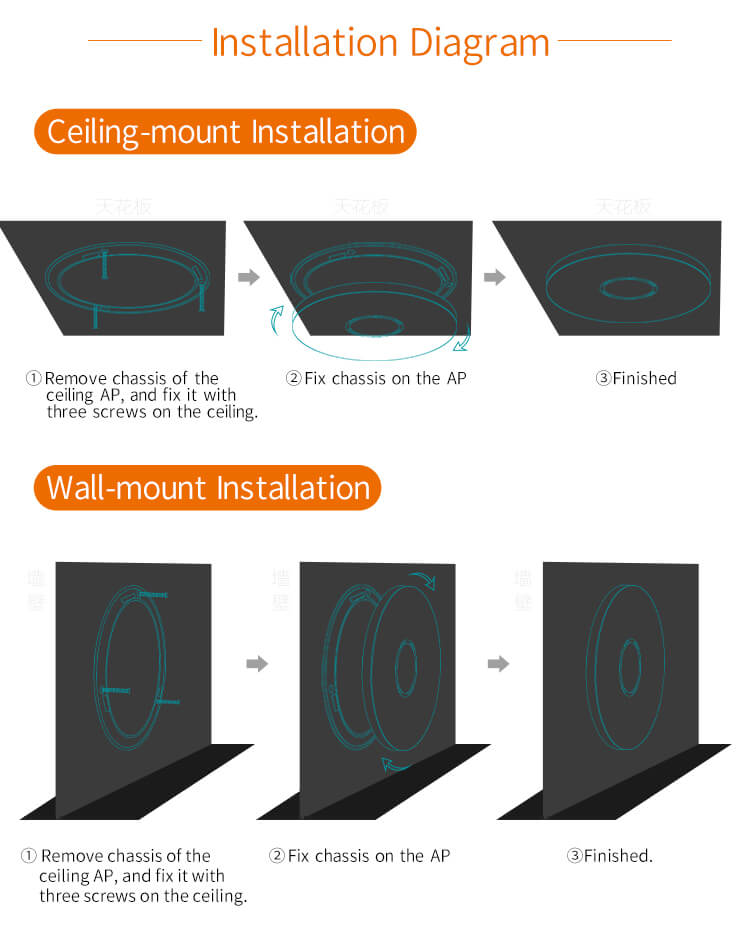

  • Installation Way: Ceiling-mounted/Wall-mounted
  • Case: Plastic Case(Imported ABS Material)
  • Physical Features: Size: 20020018mm; Weight: 0.32Kg
  • Working Environment:
  • Working Temperature: 0 C~40 C;
  • Storage Temperature: -40 C~70 C;
  • Operation Humidity: 10%~90%RH Non-condensing
  • Storage Humidity: 5%~90%RH Non-condensing
