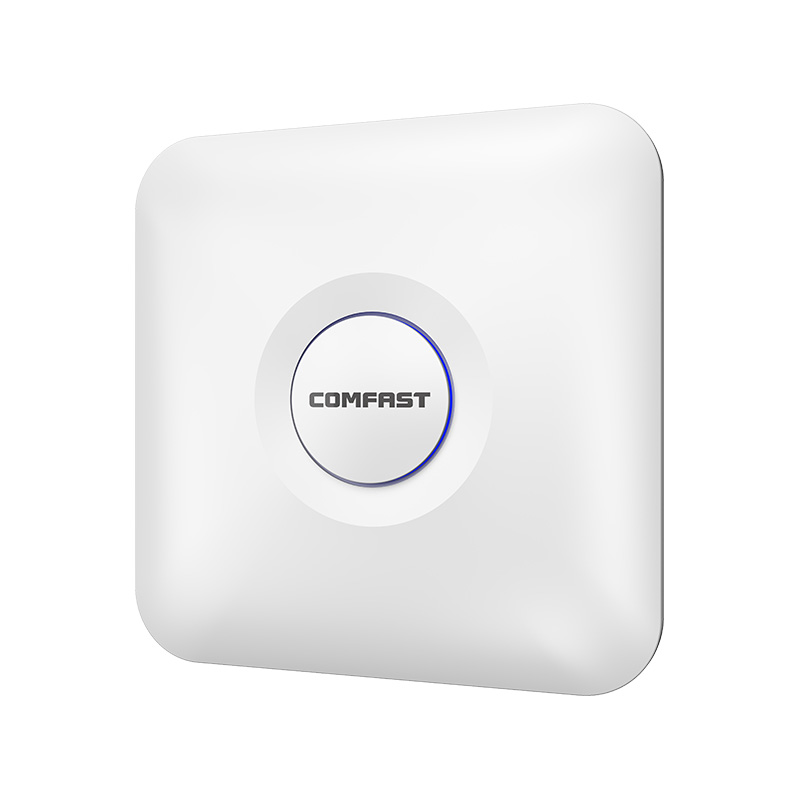

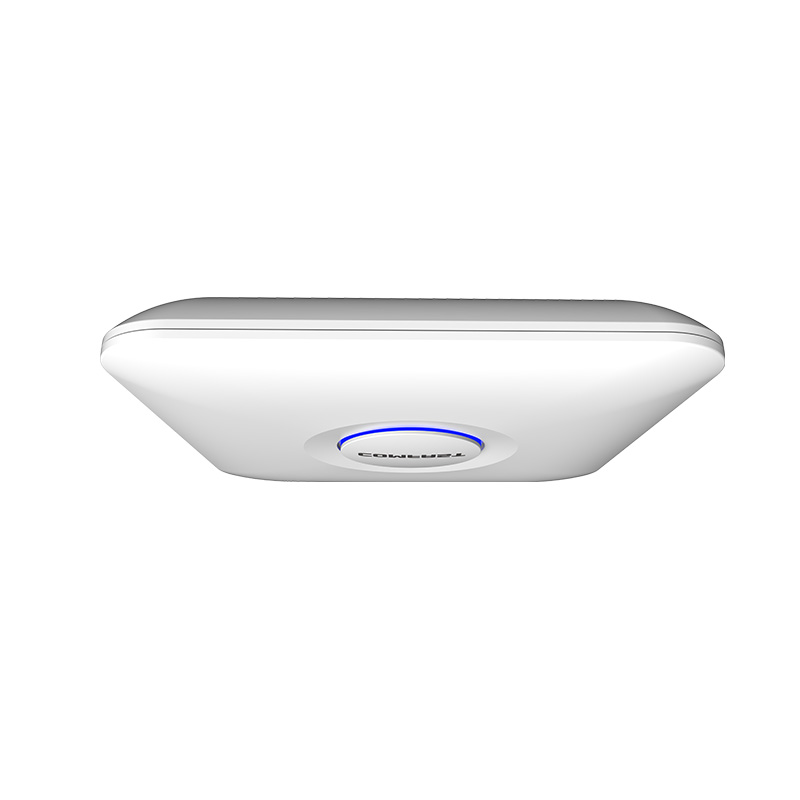

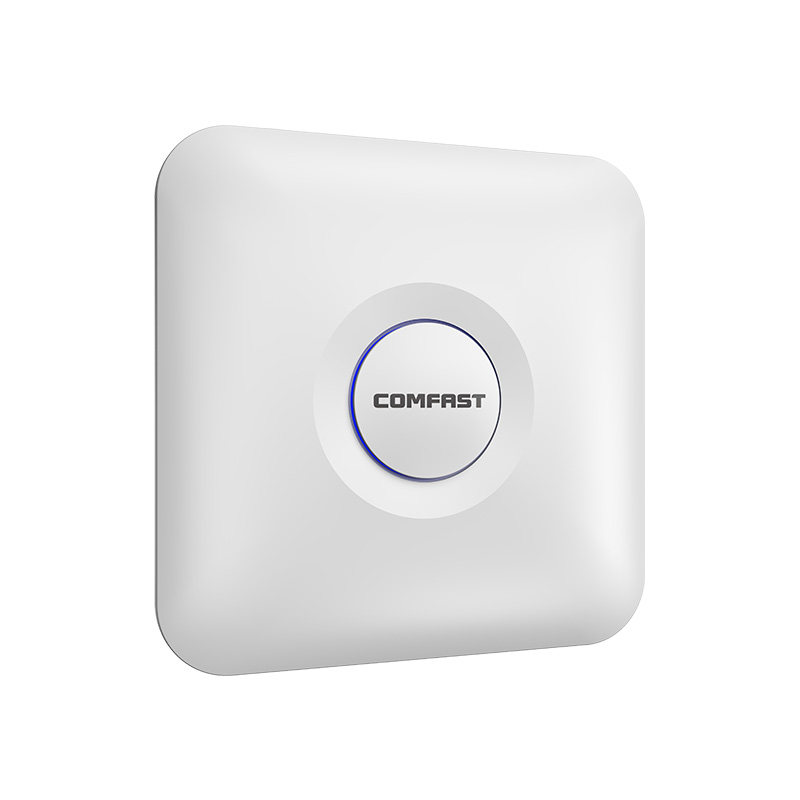

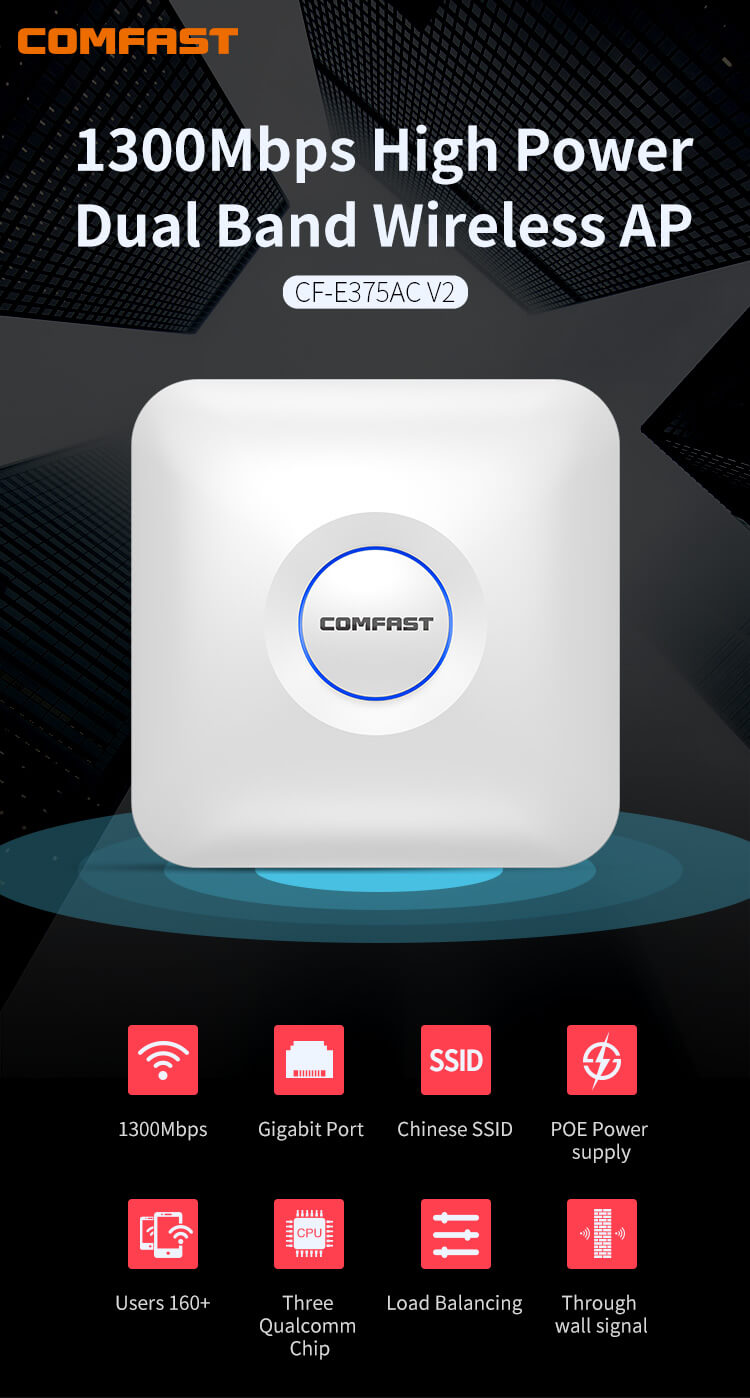

CF-E375AC V2 1300Mbps 11AC Dual Frequency Wireless Ceiling AP
- Model: CF-E320N V2.0
- Power Consumption(Max): <13W
- IP Index: IP31
- MTBF: >250000H

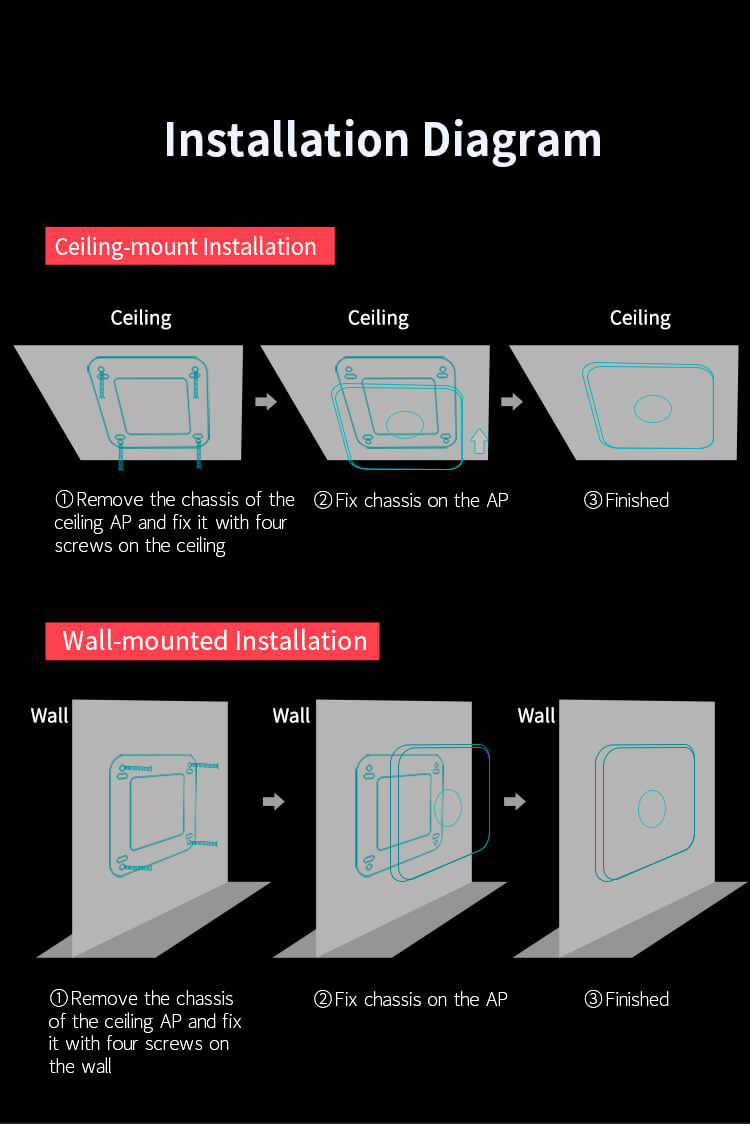

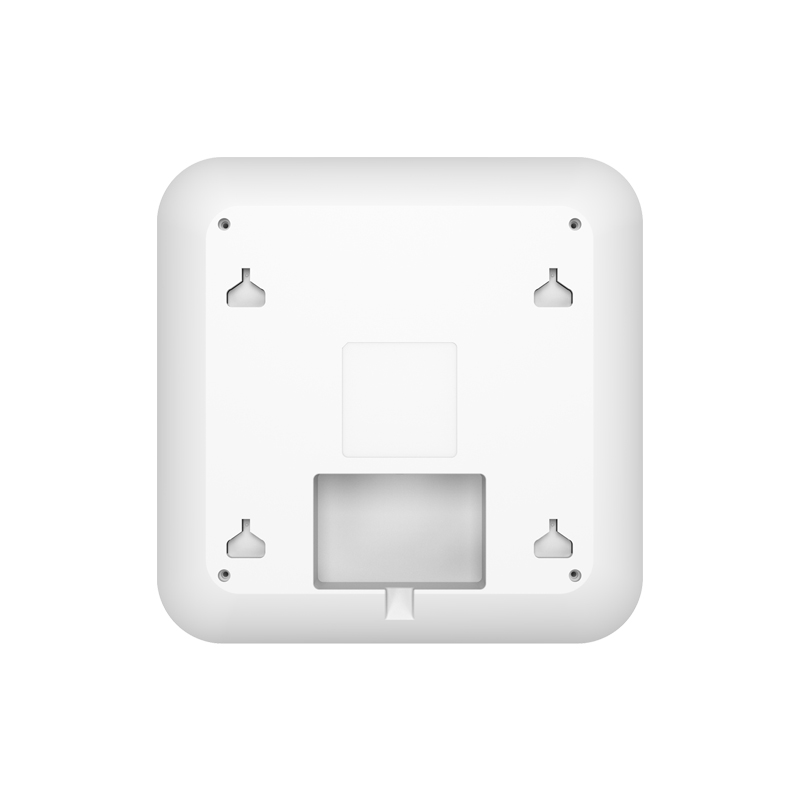

- Installation Way: Ceiling-mounted,Wall-mounted
- Case: Plastic Case(Imported ABS Material)
- Physical Features: Size:220*220*35mm

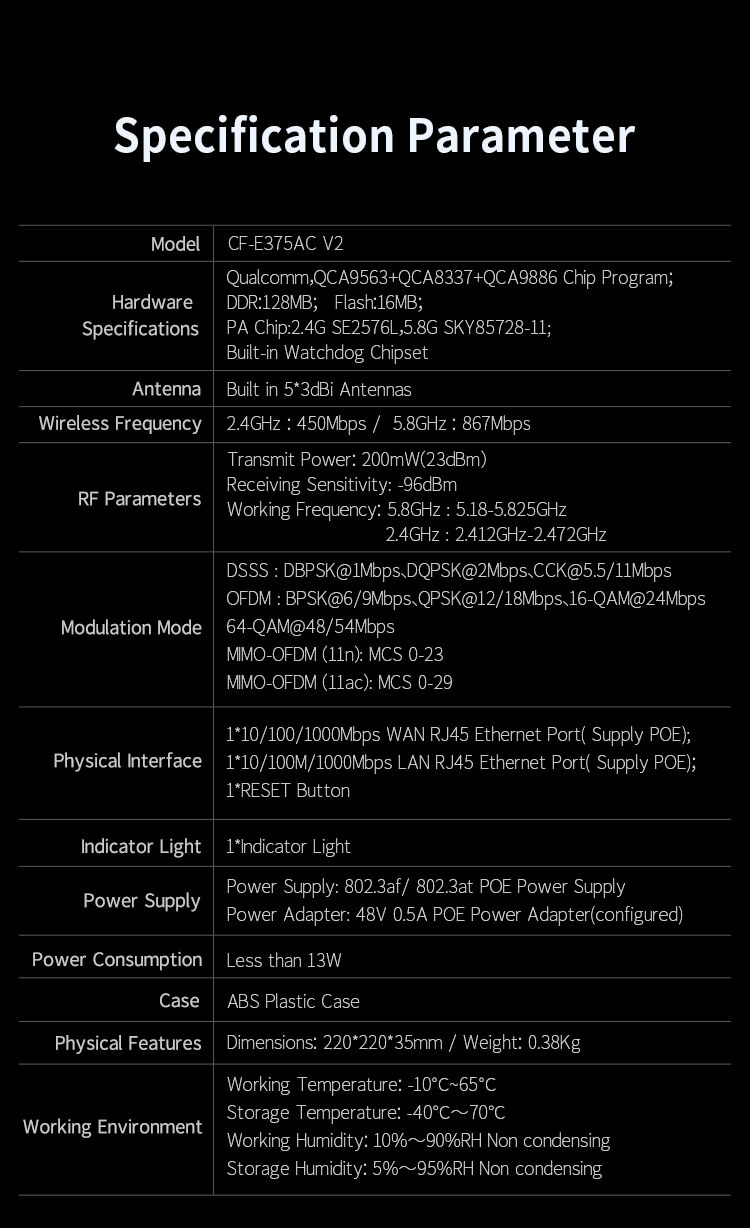

Specifications:

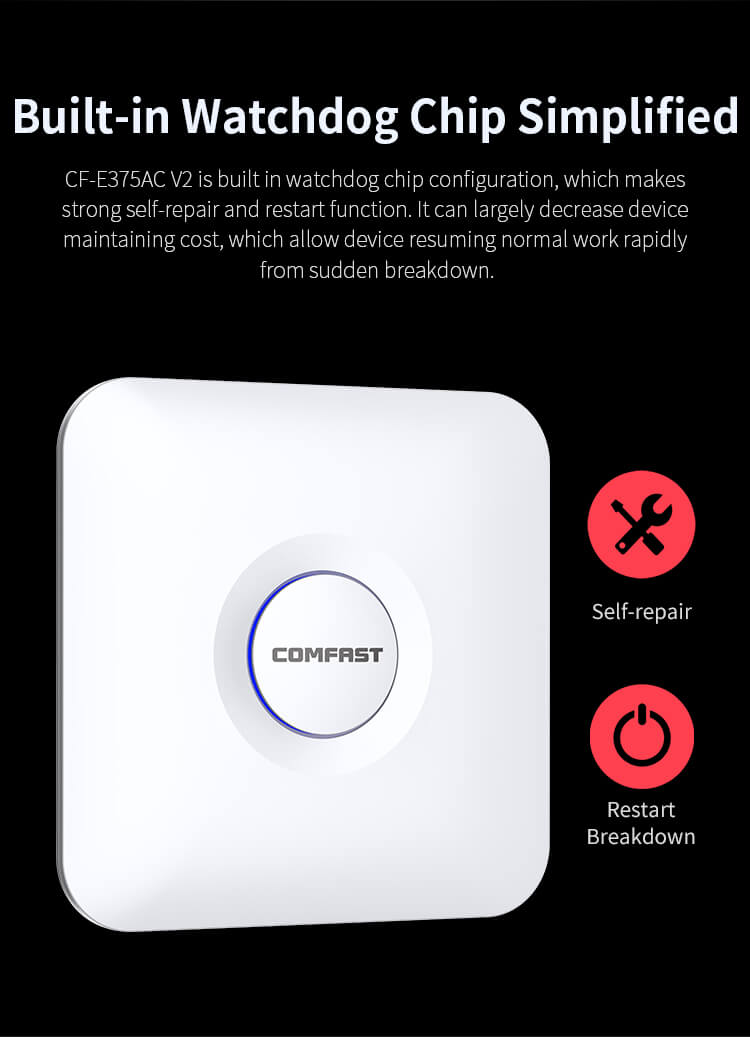

| Hardware Specifications | Chipset:Qualcomm QCA9563+QCA8337+QCA9886; DDR:128MB; Flash: 16MB; PA:2.4G SKY85330-11, 5.8G SKY85735-11; Built in Watchdog Chipset |
| Antenna | Built in 5*3dBi Antennas |
| Transmission Rate | 2.4GHz: 450Mbps;5.8GHz: 867Mbps |
| RF Parameters | Output Power (Max):200mW (23dBm); Receiving Sensitivity (Max):-96dBm; Frequency:5.8GHz:5.18-5.825GHz; 2.4GHz:2.412GHz-2.472GHz |

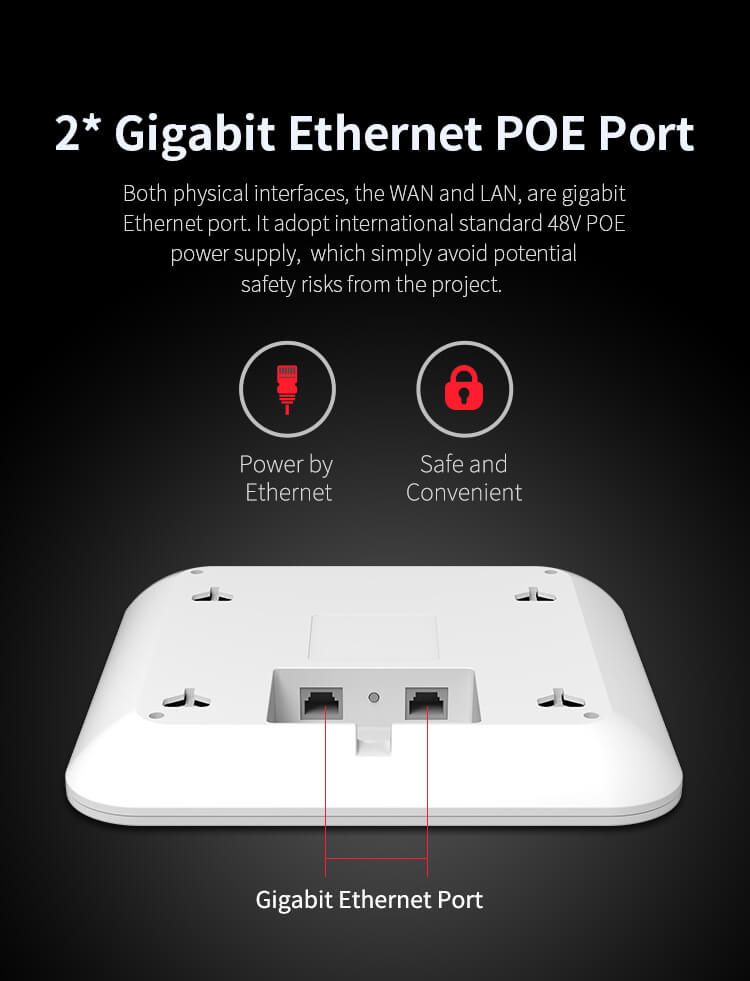

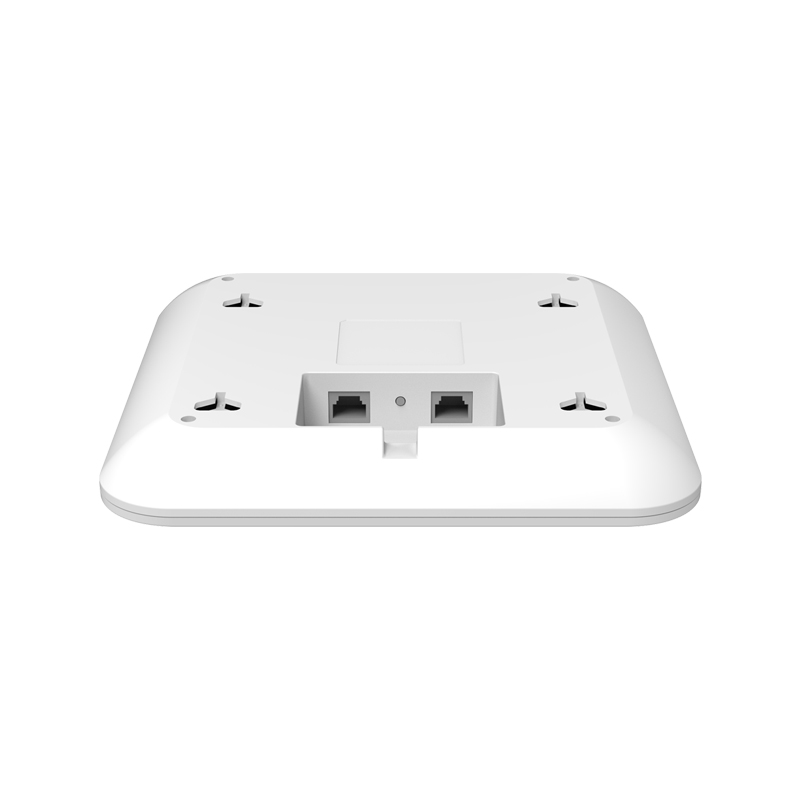

| Physical Ports | 1*10/100/1000Mbps WAN RJ45Ethernet Port; Support POE Power Supply; 1*10/100M/1000Mbps LAN Ethernet Port;Support POE Power Supply; 1*RESET Button |
| Indicator | Three Color Indicator |
| Power | Power Supply:802.3af/802.3at POE Power Supply(0-100m); Power adapter:48V 0.32A POE Power Adapter(Configured) |
| Power Consumption(Max) | <13W |
| IP Index | IP31 |
| MTBF | >250000H |
| Installation Way | Ceiling-mounted,Wall-mounted |
| Case | Plastic Case(Imported ABS Material) |
| Physical Features | Size:220*220*35mm |
| Working Environment | Working Temperature: 0℃~40℃; Storage Temperature:-40℃~70℃; Operation Humidity:10%~90%RH Non condensing; Storage Humidity: 5%~95%RH Non condensing |

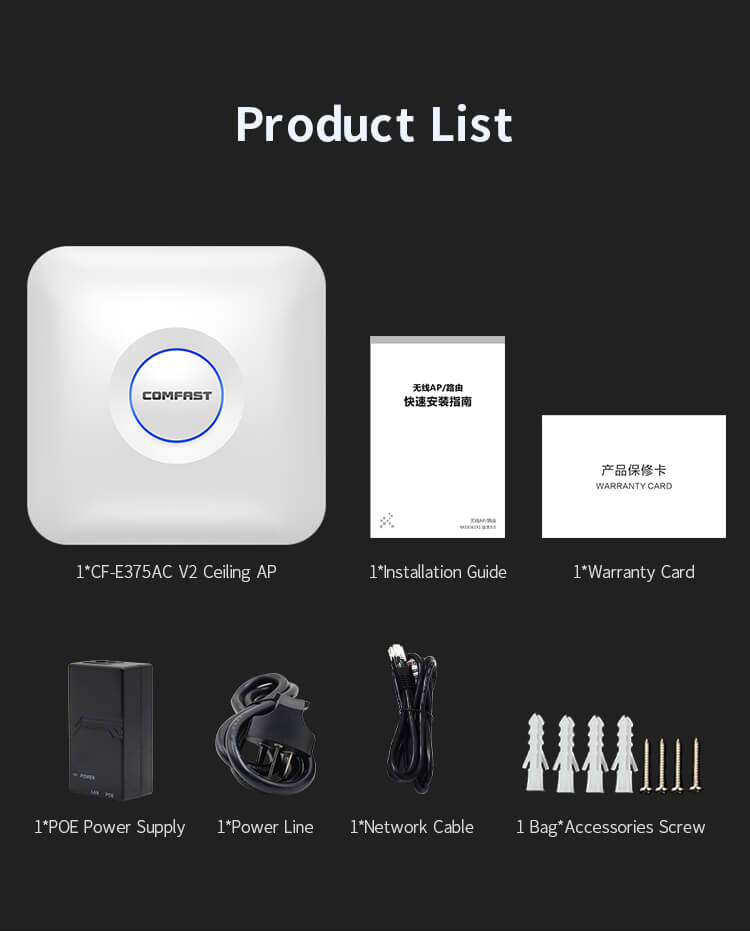

Product List
