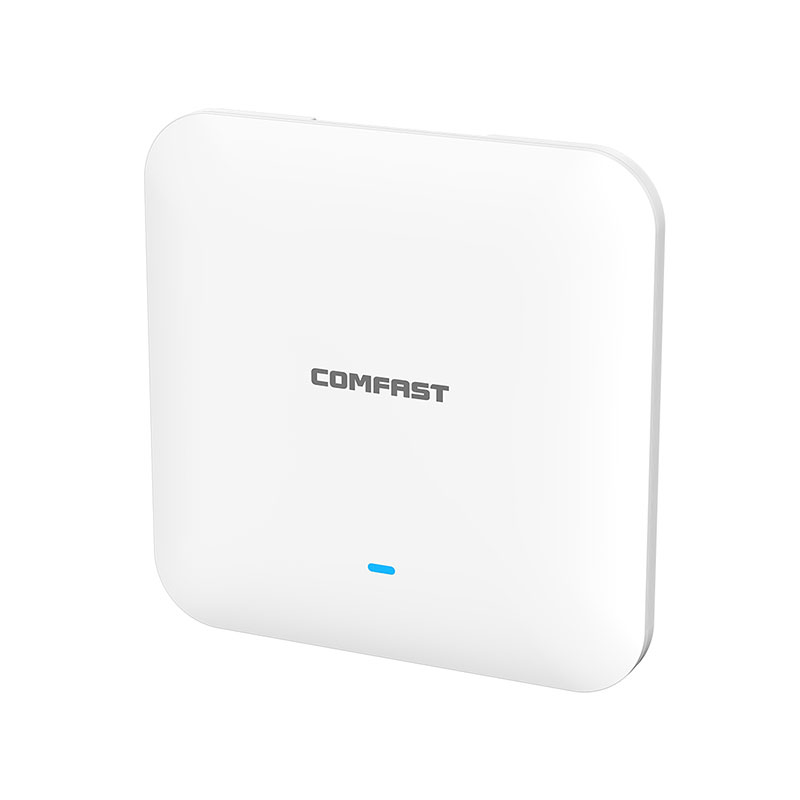

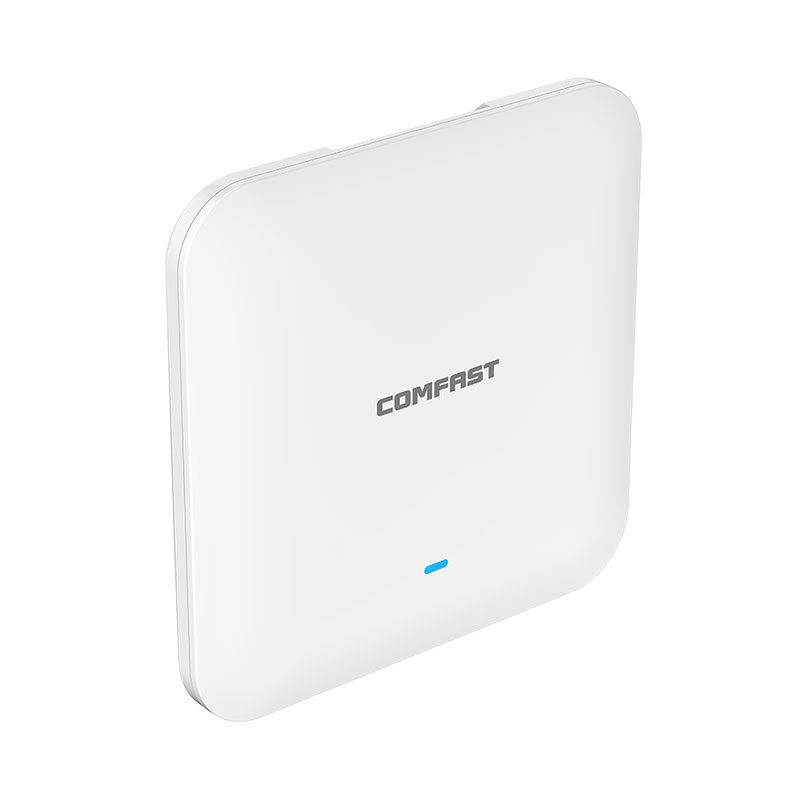

CF-E393AX 3000Mbps WiFi6 Wireless Wall-mounted Ceiling AP

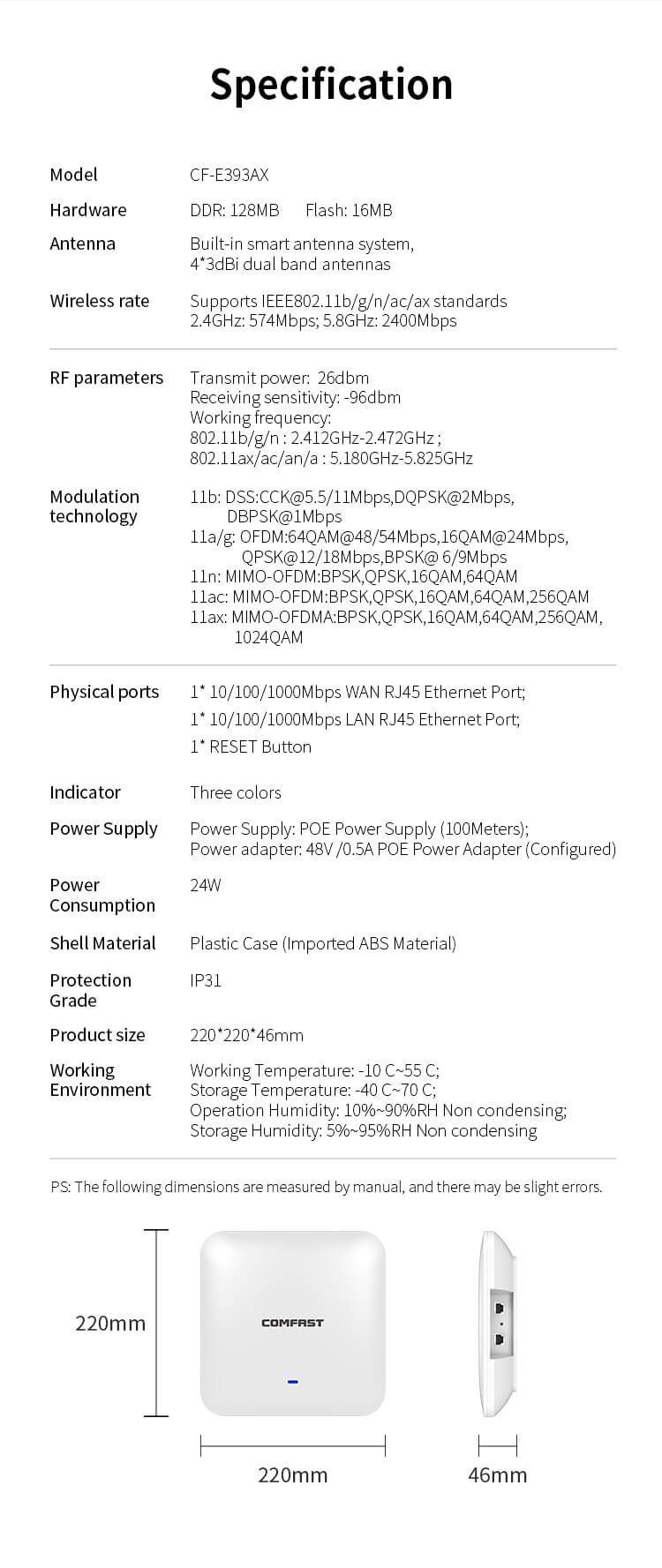

Specifications:

Hardware Specification: Chipset: MT7981A+ MT7976D+ MT7531AE; 128MB; Flash: 16MB;
Antenna: Built in 4*3dBiAntennas

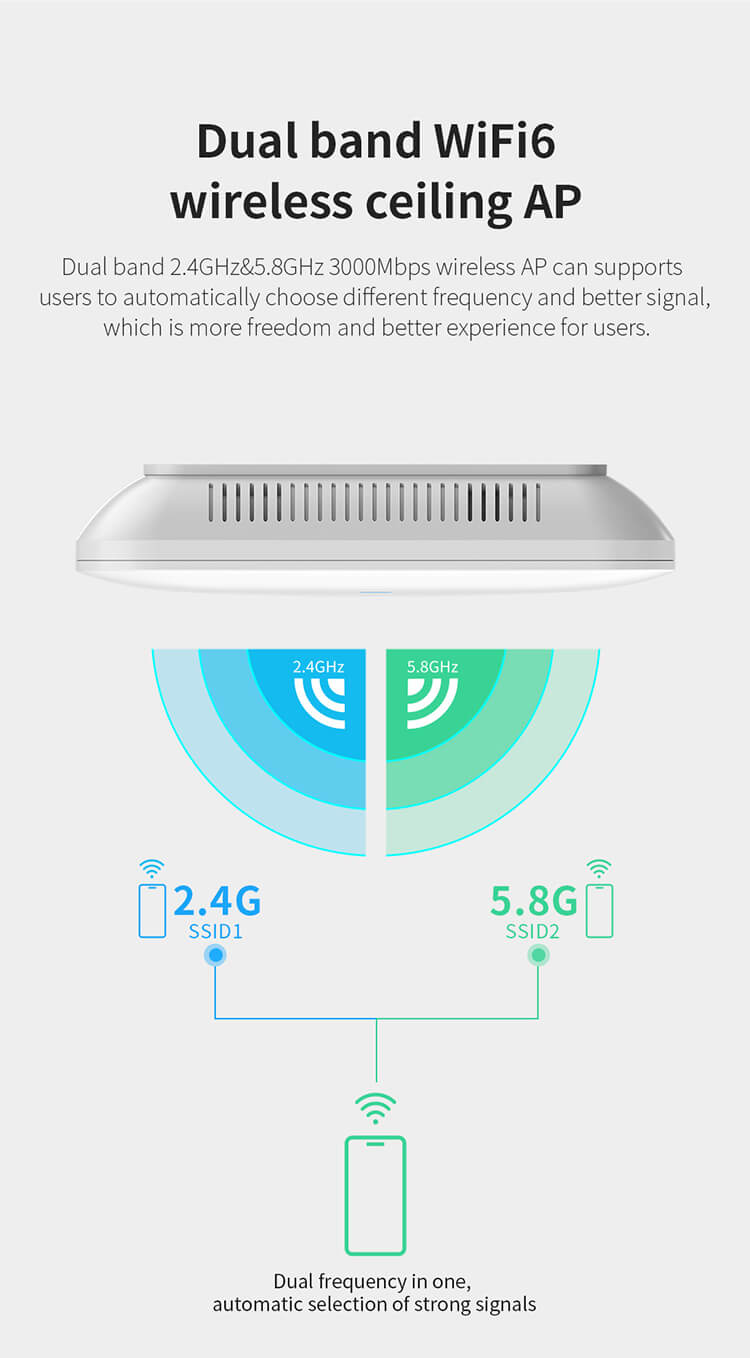

Transmission Rate: 2.4GHz: 574Mbps; 5GHz: 2400Mbps
RF Parameters:
Output Power (Max): 26dBm;
Receiving Sensitivity (Min): -96dBm; Frequency:
802.11ax/ac/n/a: 5.18Ghz-5.825Ghz
802.11b/g/n: 2.412GHz-2.4835GHz
Modulation Mode
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-
QAM@48/54Mbps;
MIMO-OFDM (11n): MCS 0-15;
MIMO-OFDM (11ac): MCS 0-9;
MIMO-OFDMA (11ac):MCS 0-11;
Modulation Way:
11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps,DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/ 54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps;
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM;
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

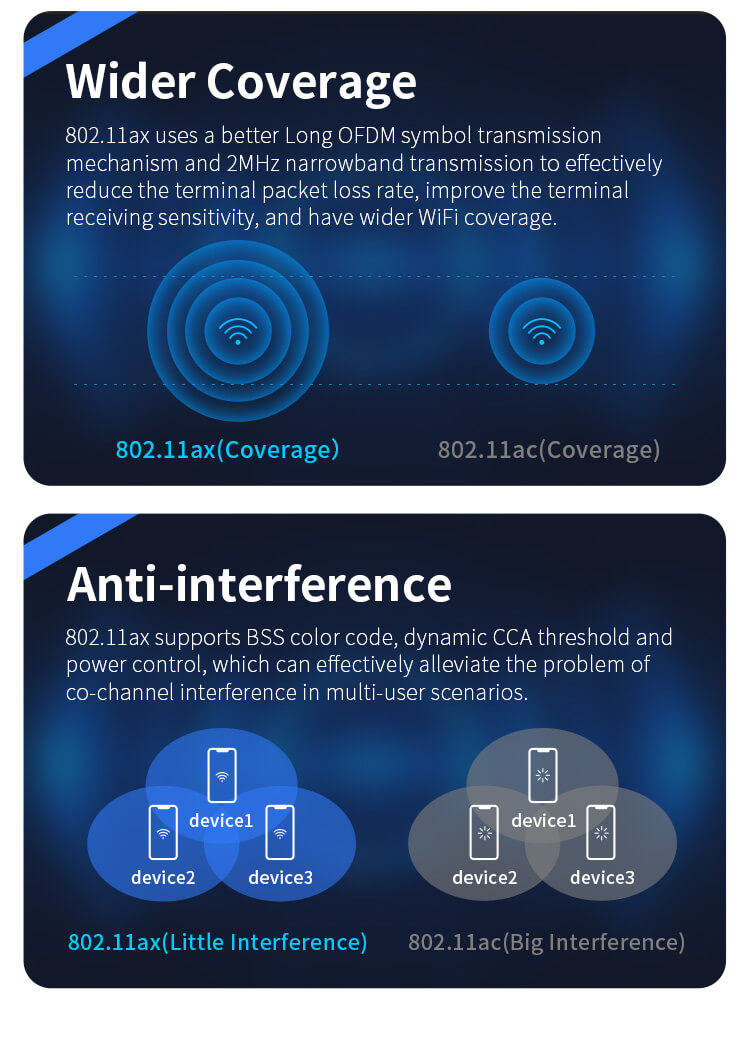

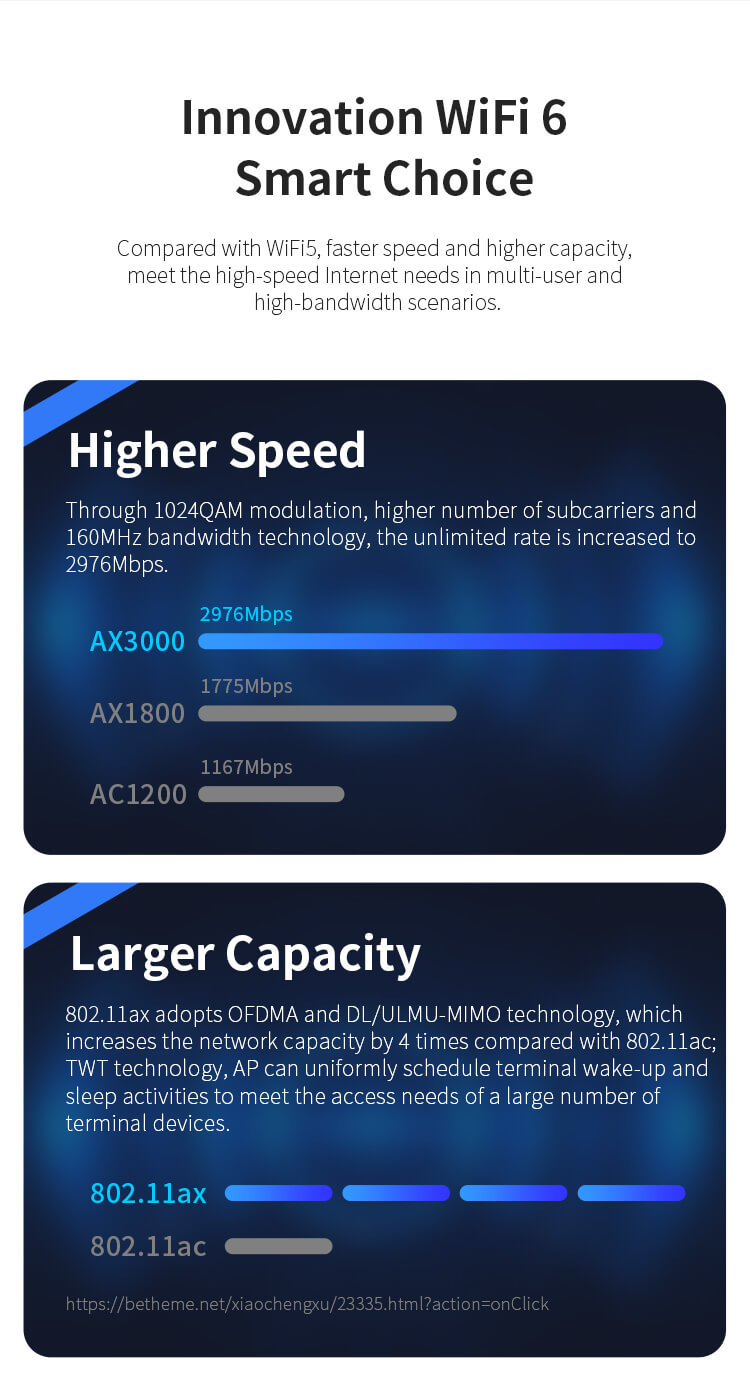

11ax：MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

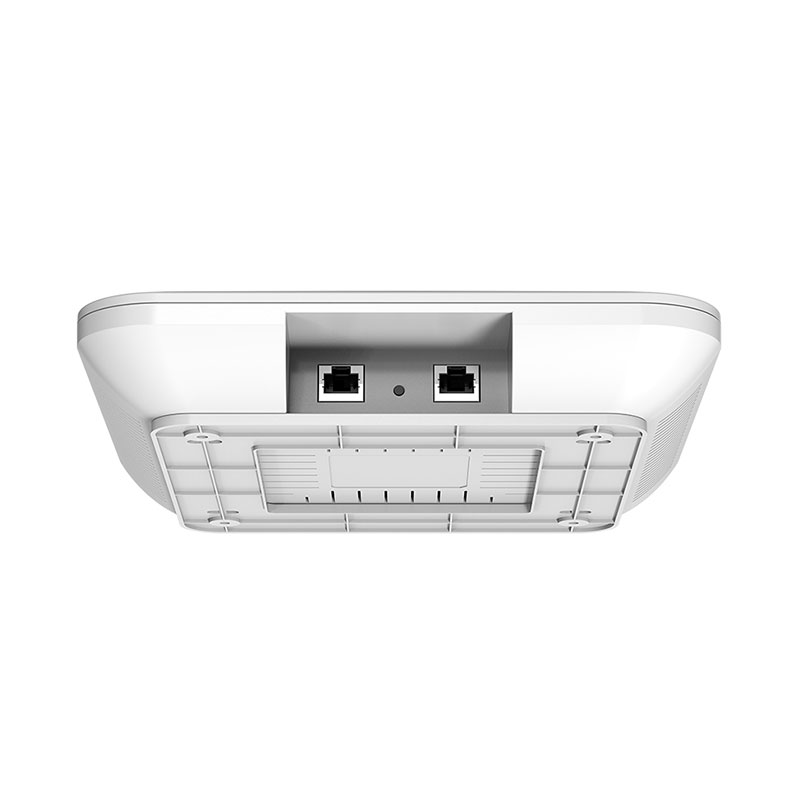

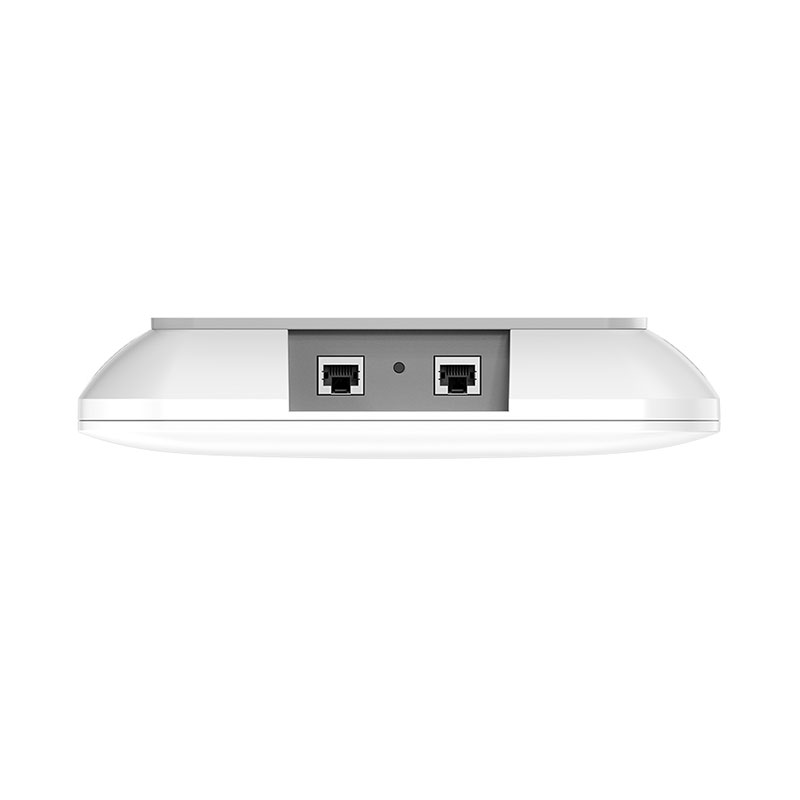

Physical Ports:

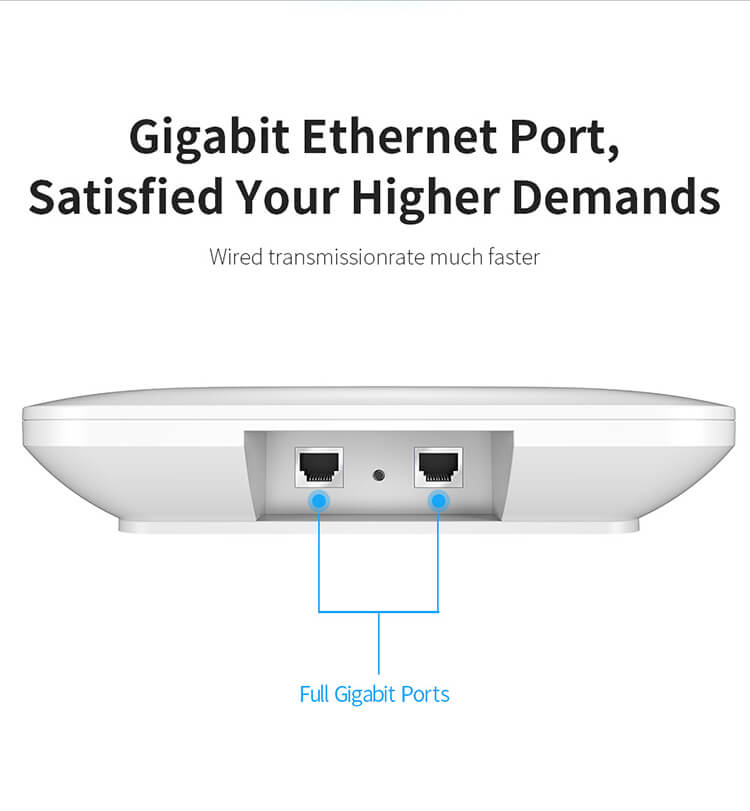

1* 10/100/1000Mbps WAN RJ45 Ethernet Port; Support POE Power Supply; 1* 10/100/1000Mbps LAN RJ45 Ethernet Port; Support POE Power Supply; 1* RESET Button
Indicator: Three Color Indicator
Power:

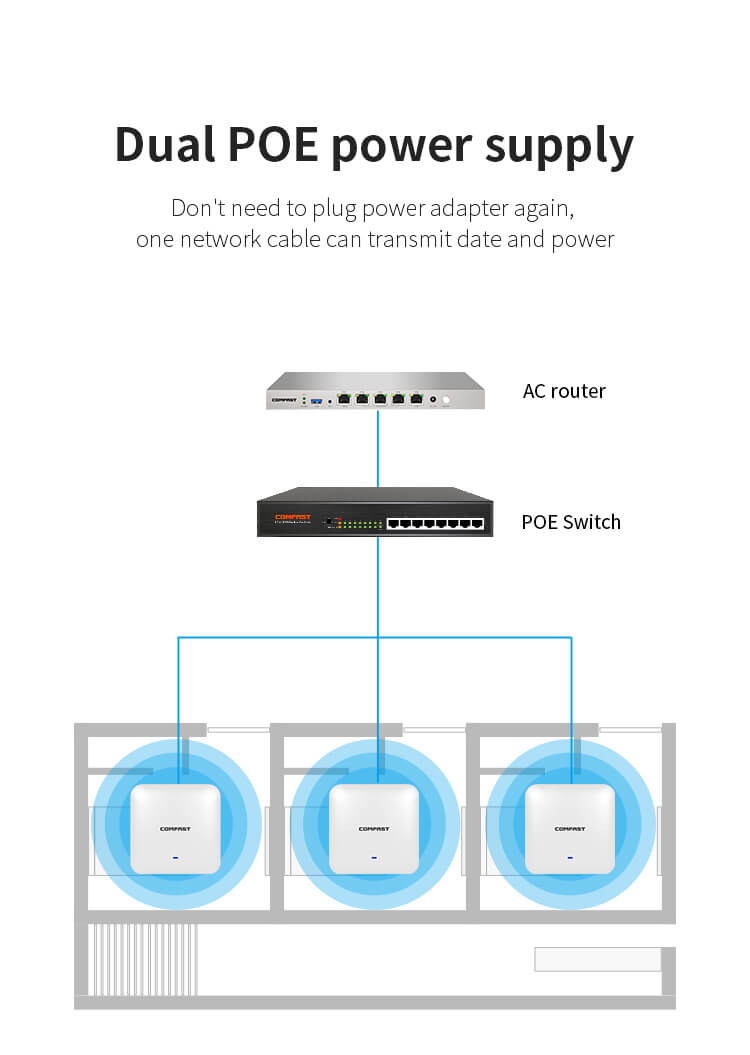

Power Supply: 802.3af/802.3at POE Power Supply(0-100m);
Power Adapter: 48V 0.5A POE PowerAdapter(Configured)
Power Consumption: <24W
IP Index: IP31
MTBF: 250000H

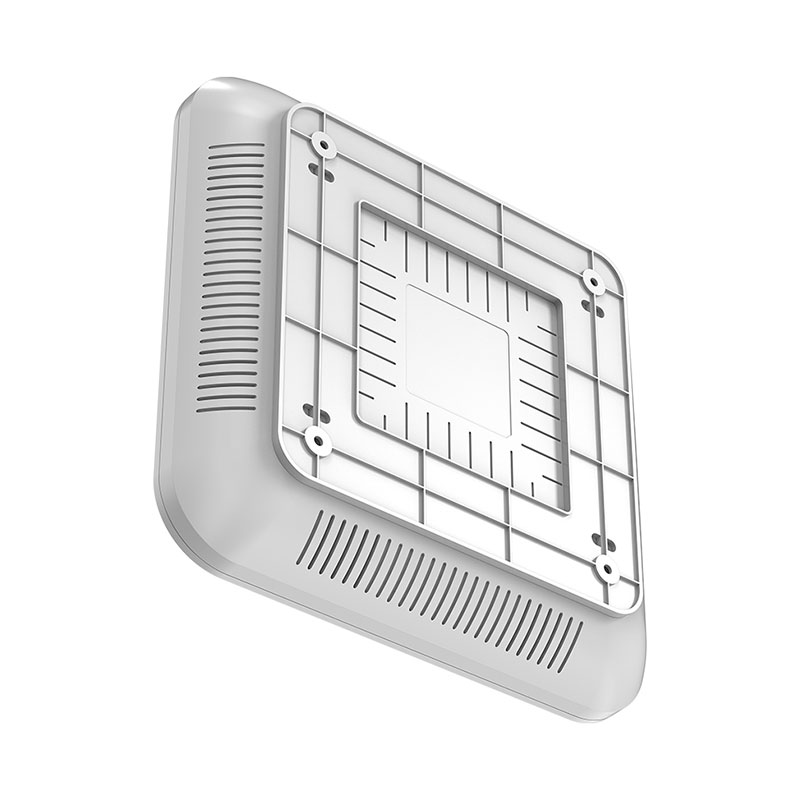

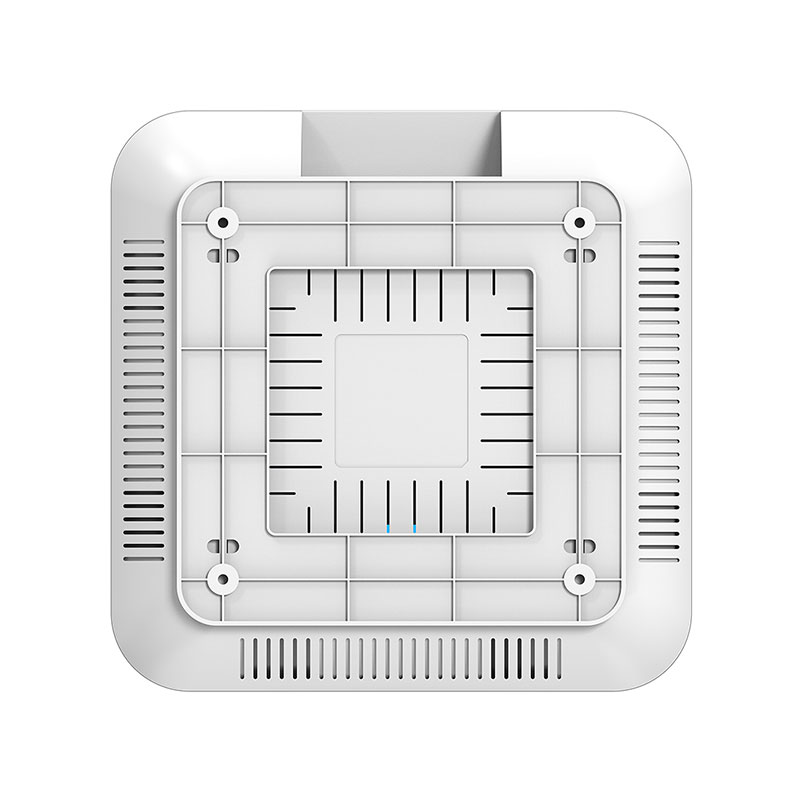

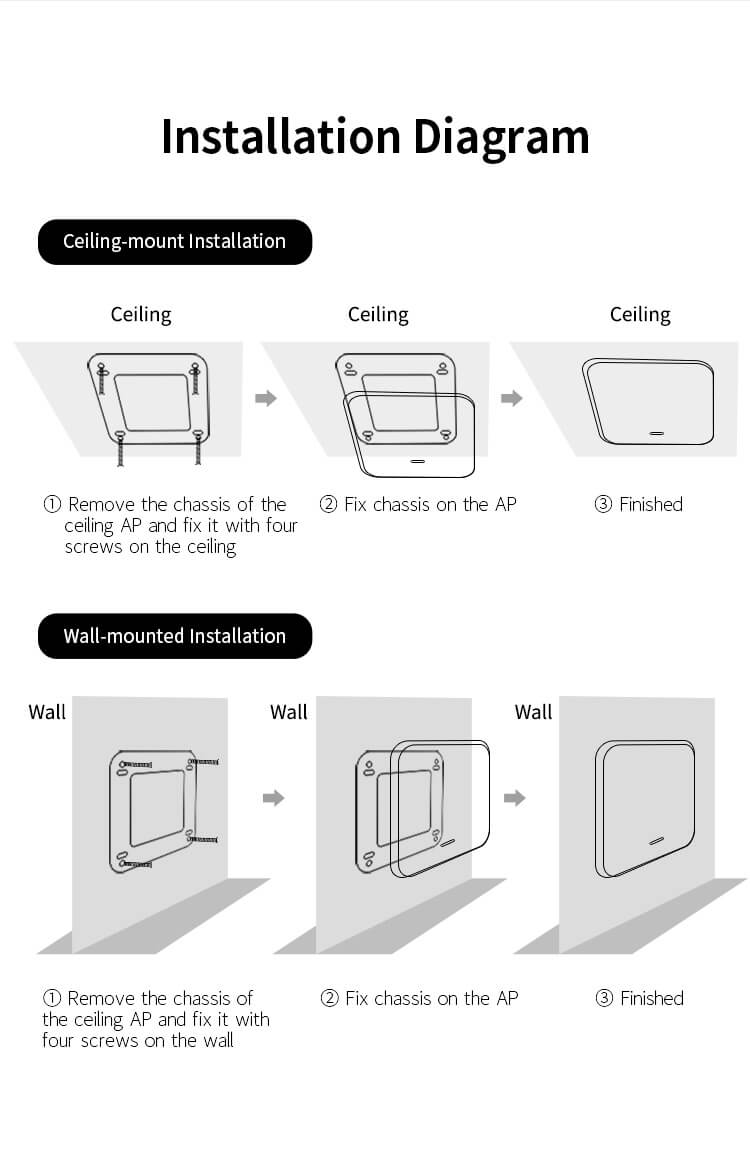

Installation Way: Ceiling-mounted, Wall-mounted
Case: Plastic Case (Imported ABS Material)

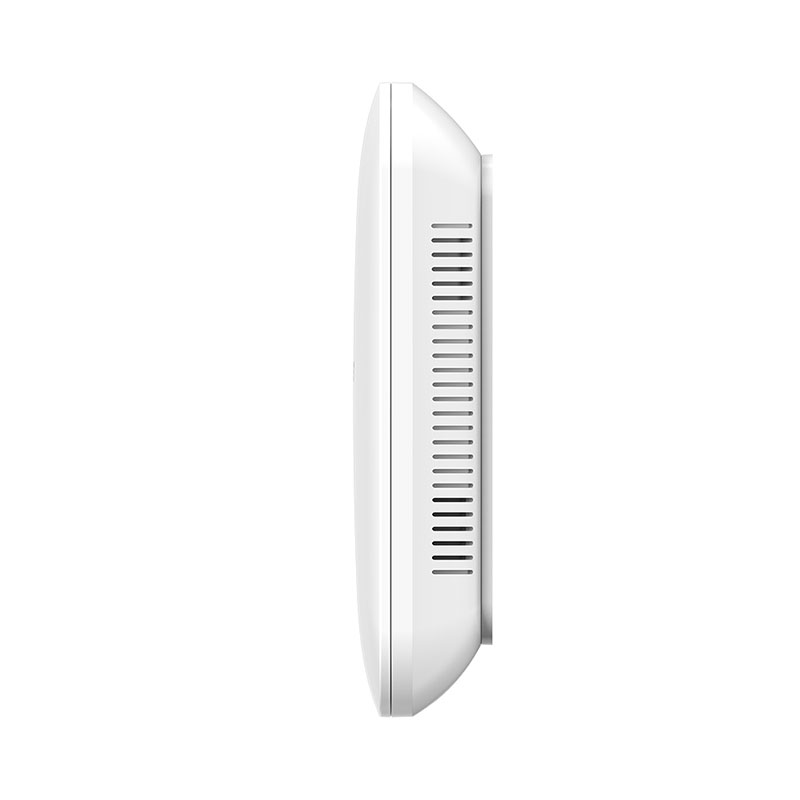

Physical Features: Size: 220*220*46mm;
Working Environment:
Working Temperature: 0℃~40℃;
Storage Temperature: -40℃~70℃;
Operation Humidity: 10%~90%RH Non condensing;
Storage Humidity: 5%~95%RH Non condensing
