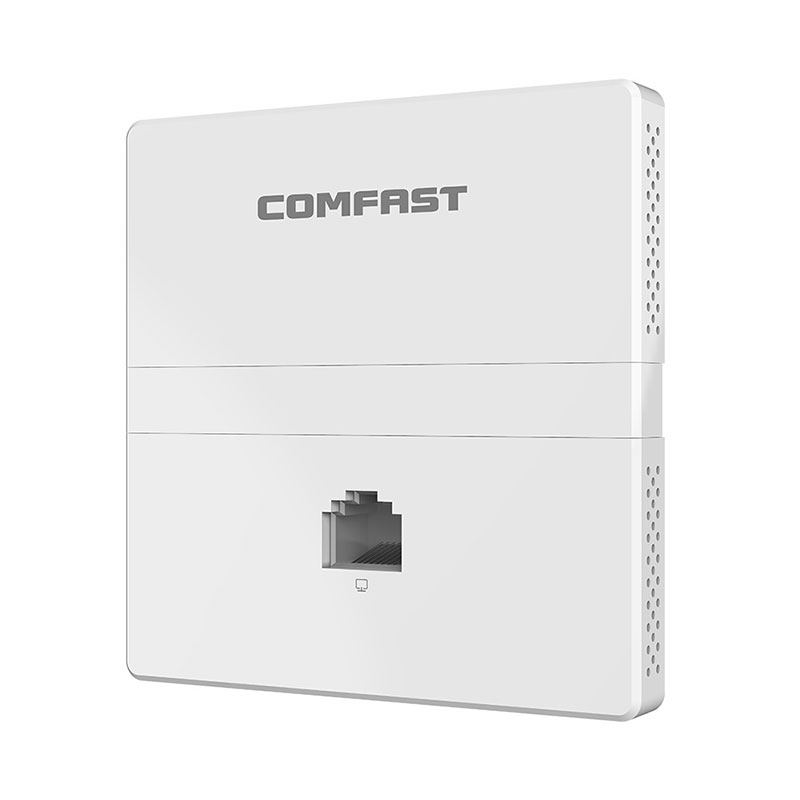

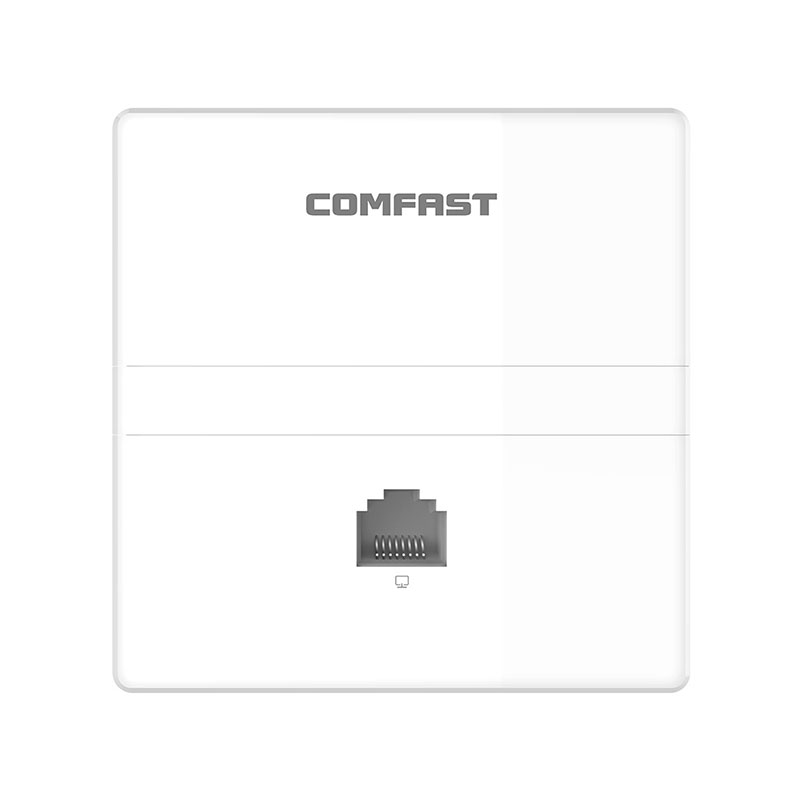

CF-E538AC V2 1200Mbps In Wall Access Point
- Model: CF-E320N V2.0
- Power Consumption: <12W
- IP Index: IP41
- MTBF: >250000H

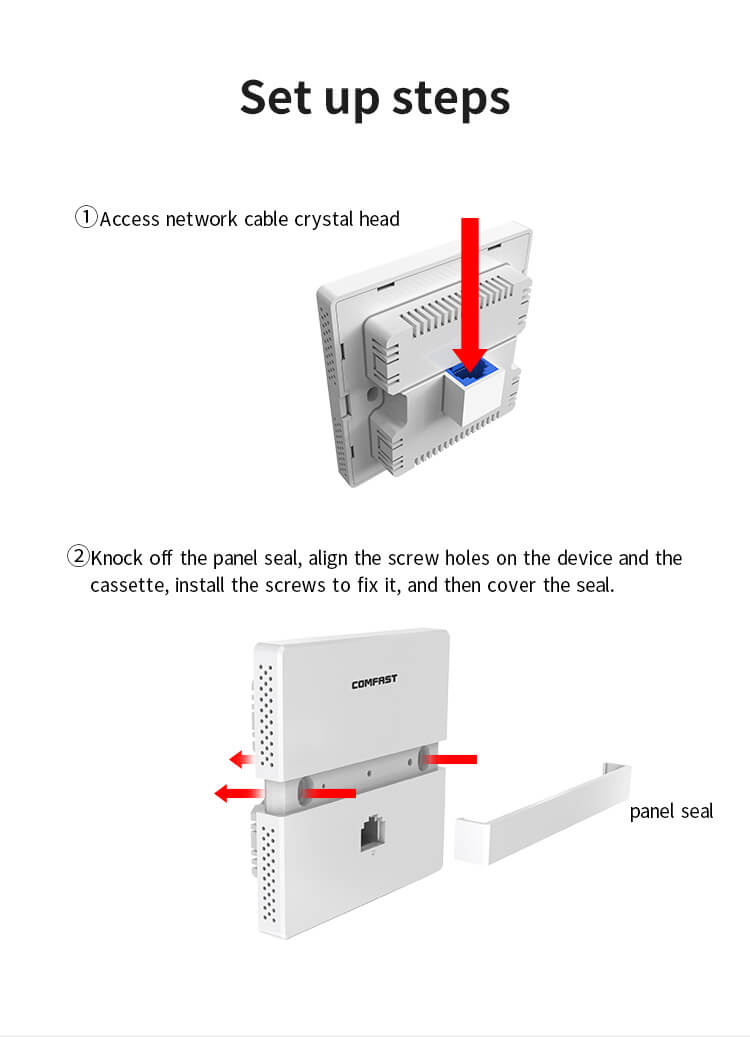

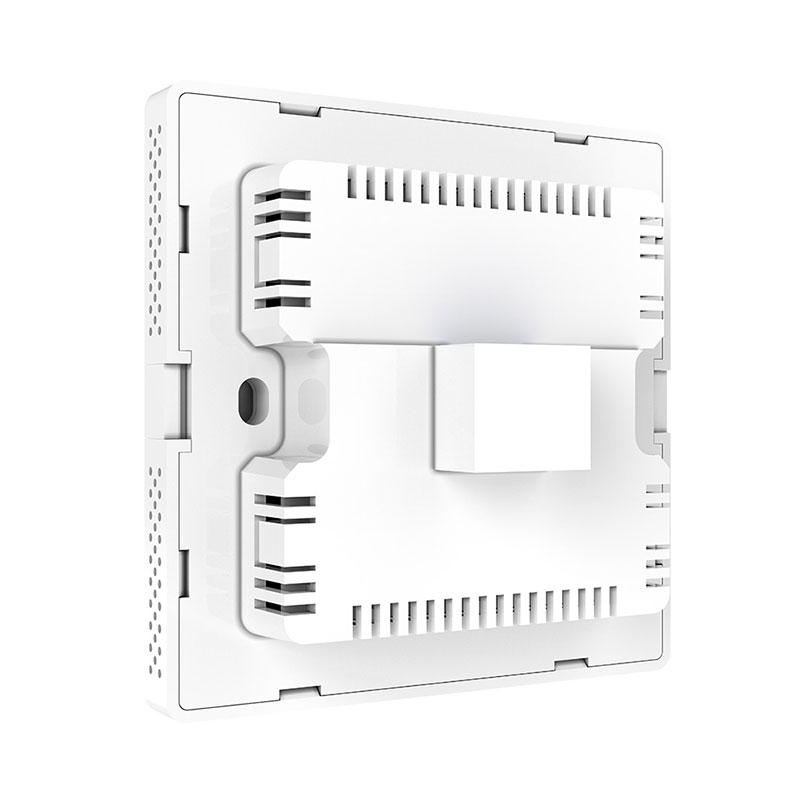

- Installation Way: In Wall Installation
- Case: Plastic Case (Imported ABS Material)

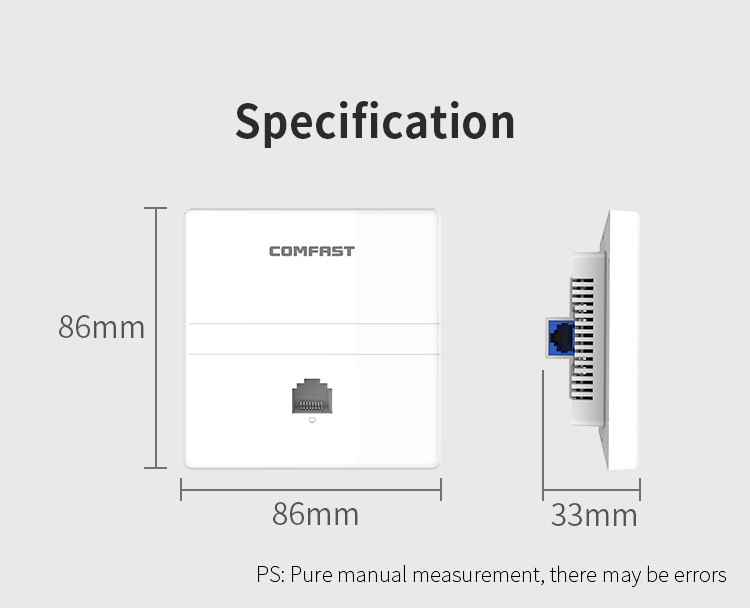

- Physical Features: Size:86*86*33mm

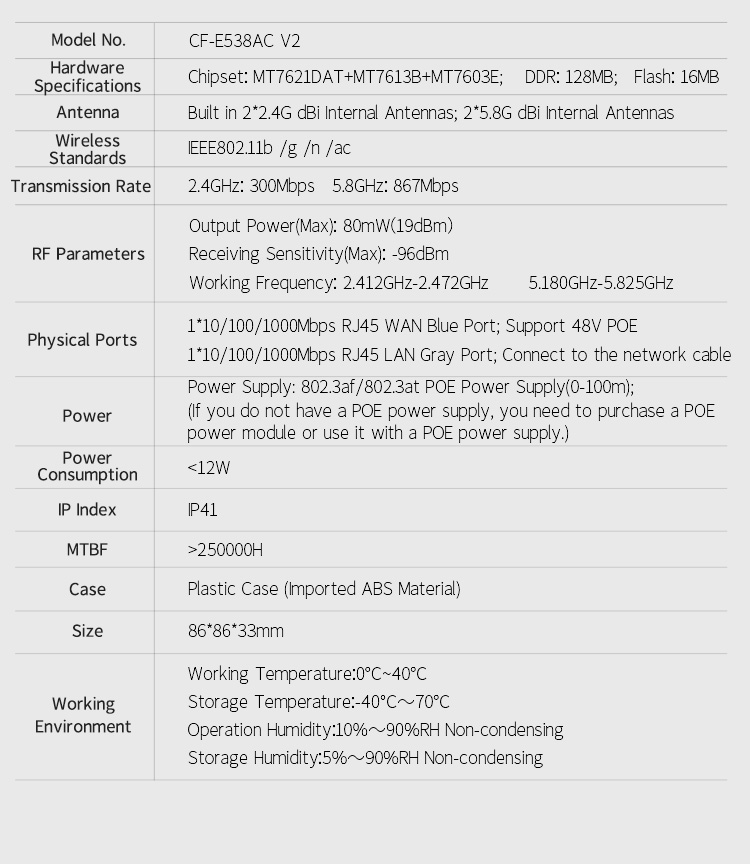

Specifications:
| Hardware Specifications | MT7621DAT+MT7613B+MT7603E;DDR:128MB;Flash:16MB |
| Antenna | 2*2dBi Internal Antennas |

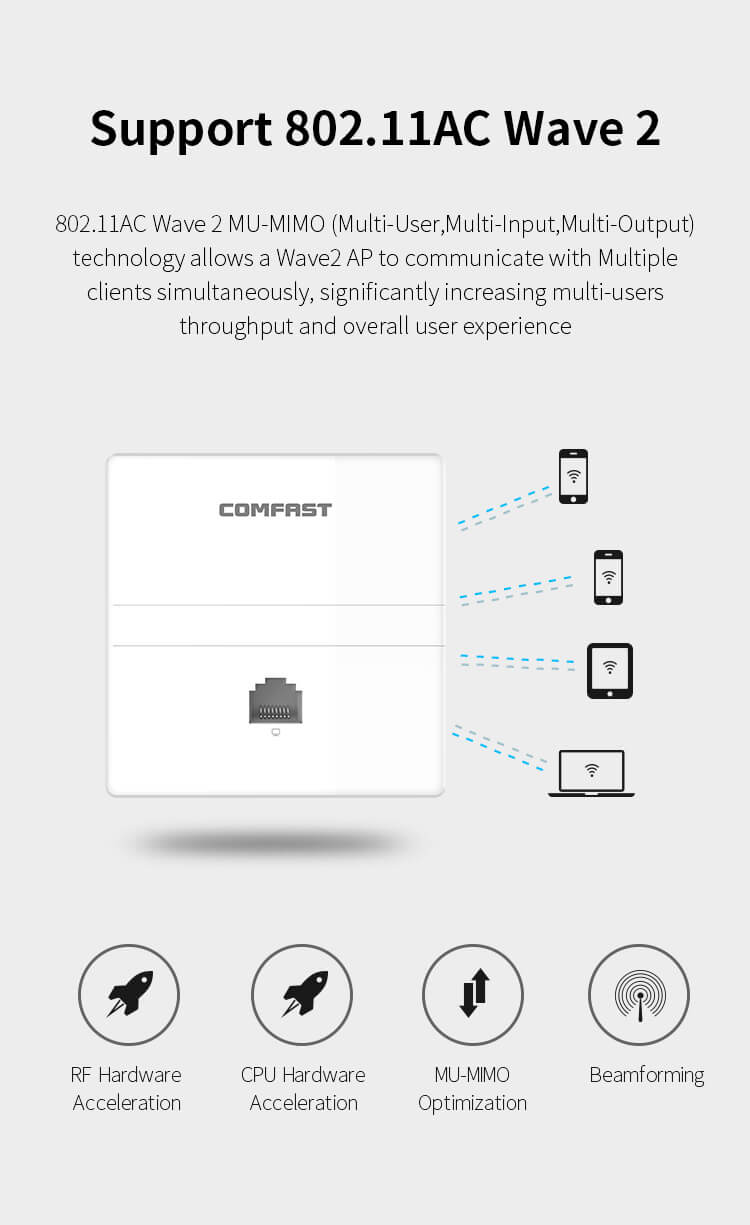

| Wireless Standards | IEEE802.11b/g/n/ac |
| RF Parameter | Output Power(Max): 200mW(23dBm); Receiving Sensitivity(Min):-96dBm; Working Frequency:2.412GHz-2.472GHz 5.180GHz-5.825GHz |
| Modulation Mode | DSSS:DBPSK@1Mbps, DQPSK@2Mbps,CCK@5.5/11Mbps; OFDM:BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps;MIMO-OFDM: MCS 0-15 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM |

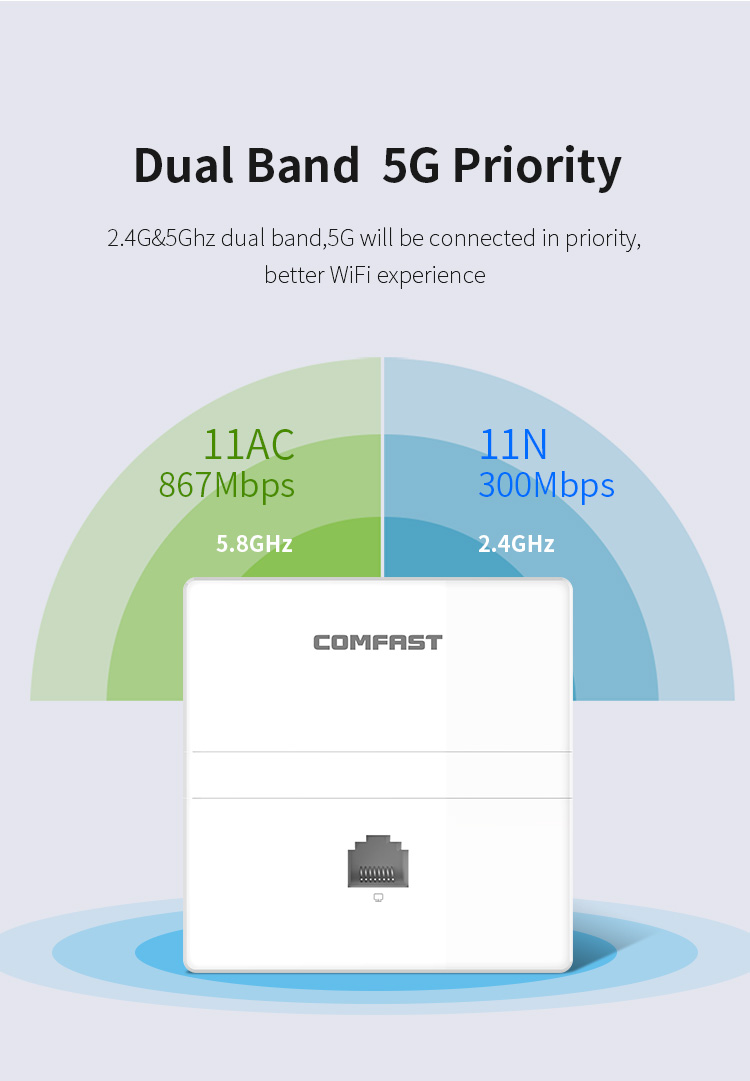

| Wireless Rate | 2.4GHz: 300Mbps; 5.8GHz: 867Mbps |
| Physical Ports | 1*10/100/1000Mbps RJ45 WAN Blue Port; Support 48V POE; 1*10/100/1000Mbps RJ45 LAN Gray Port; Connect to the network cable |
| Indicator | WiFi status indicator; Control light switch |

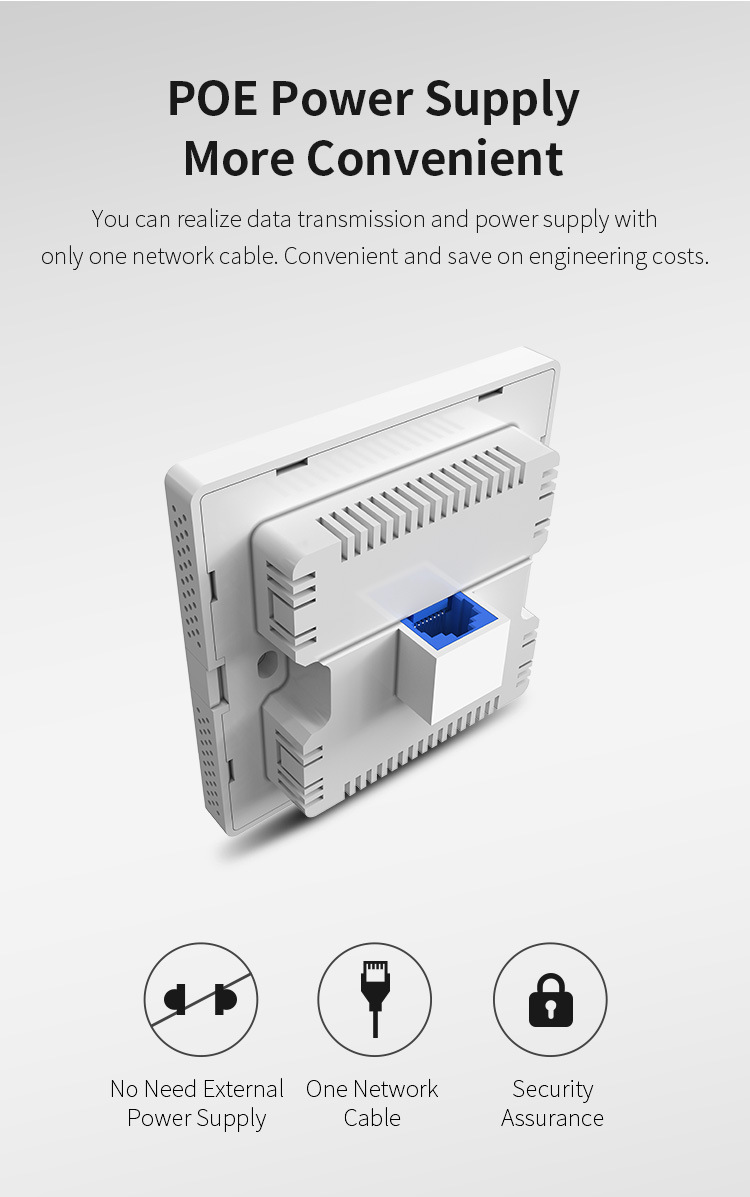

| Power | Power Supply:802.3af/802.3at POE Power Supply(0-100m); (If you do not have a POE power supply, you need to purchase a POE power module or use it with a POE power supply.) |
| Power Consumption | <12W |
| IP Index | IP41 |
| MTBF | >250000H |
| Installation Way | In Wall Installation |
| Case | Plastic Case (Imported ABS Material) |
| Physical Features | Size:86*86*33mm; |
| Working Environment | Workng Temperature: 0 ℃~40℃; Storage Temperature: -40℃~70℃; Operation Humidity: 10%~90%RH Non-condensing; Storage Humidity:5%~90%RH Non-condensing |
