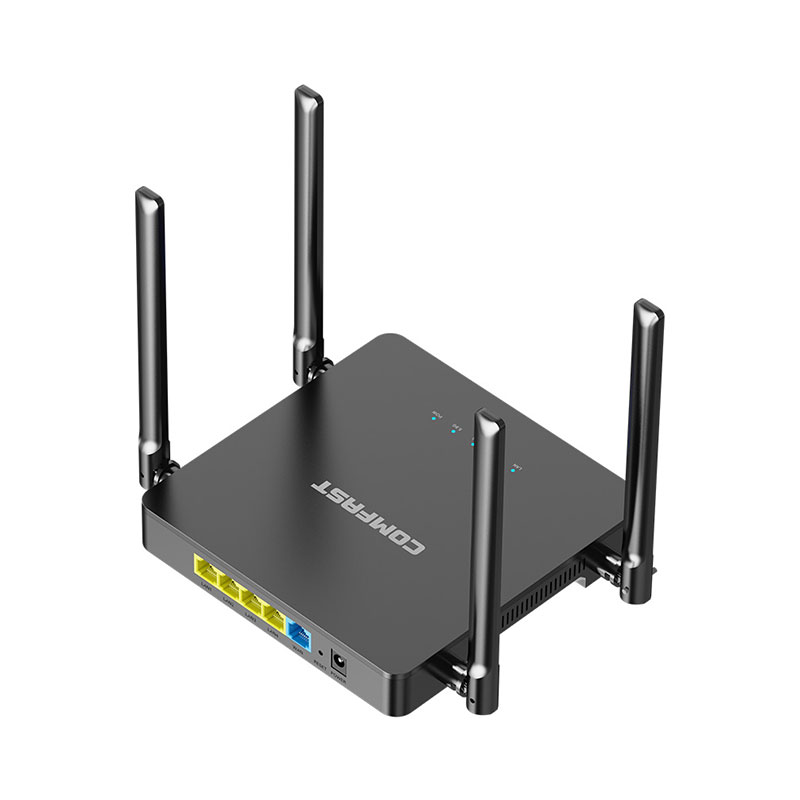

CF-N5 V2 1200Mbps Dualband
Wireless Router

Model: CF-N5 V2
Antenna: External 4*5dBi Antennas
Wireless Standard:IEEE802.11a/b/g/n/ac
Transmission Rate: 2.4GHz:300Mbps , 5.8GHz：867Mbps
Indicator: LAN，WAN，2.4G，5.8G，POWER
Installation: Tabletop placement

Description

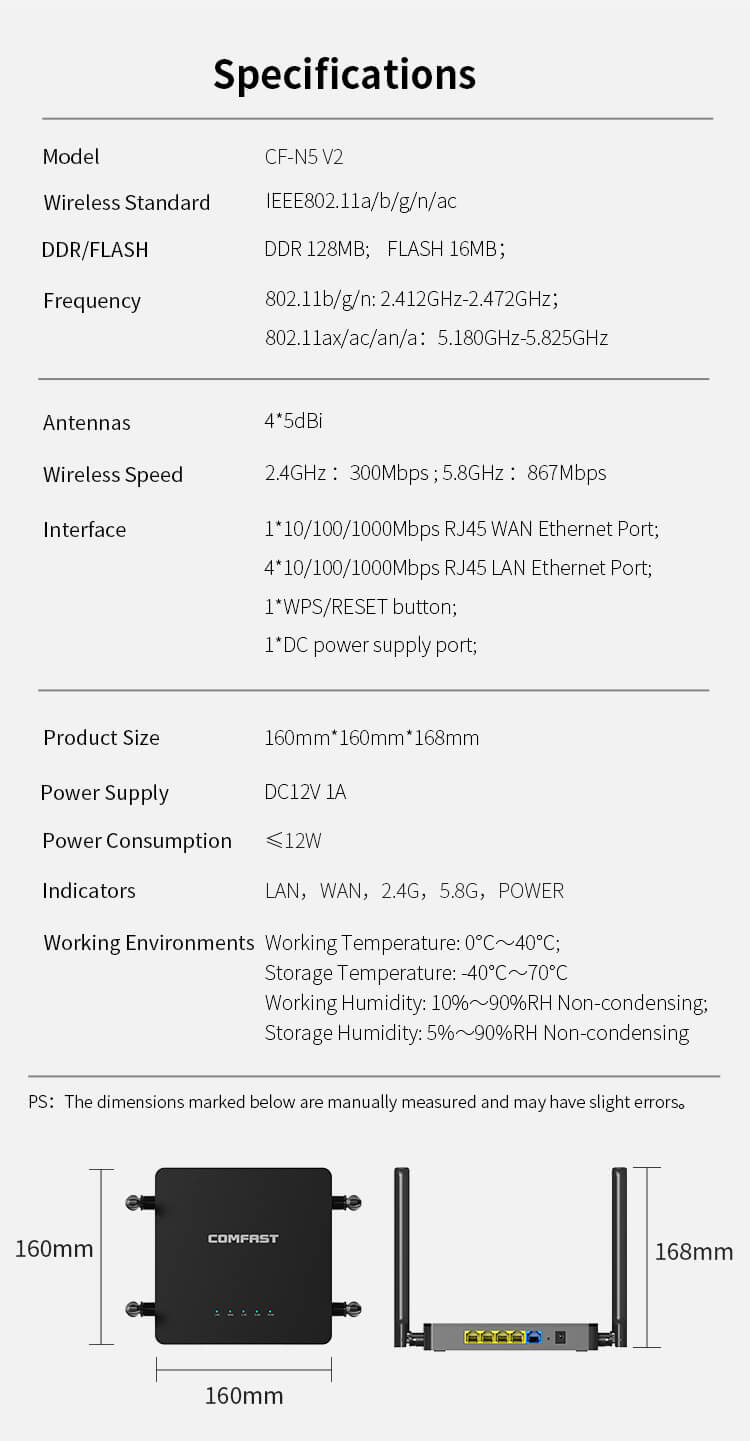

Specifications:

Hardware Specification:
MT7621DAT+MT7603E+MT7613B, PA: 2.4G KCT8227D*2
DDR: 128MB
Flash: 16MB

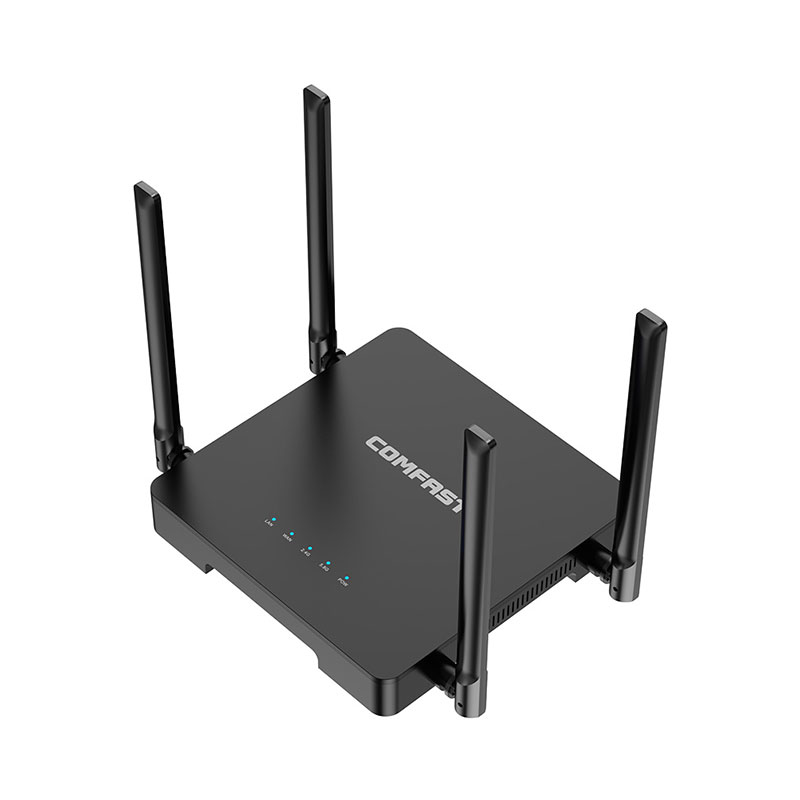

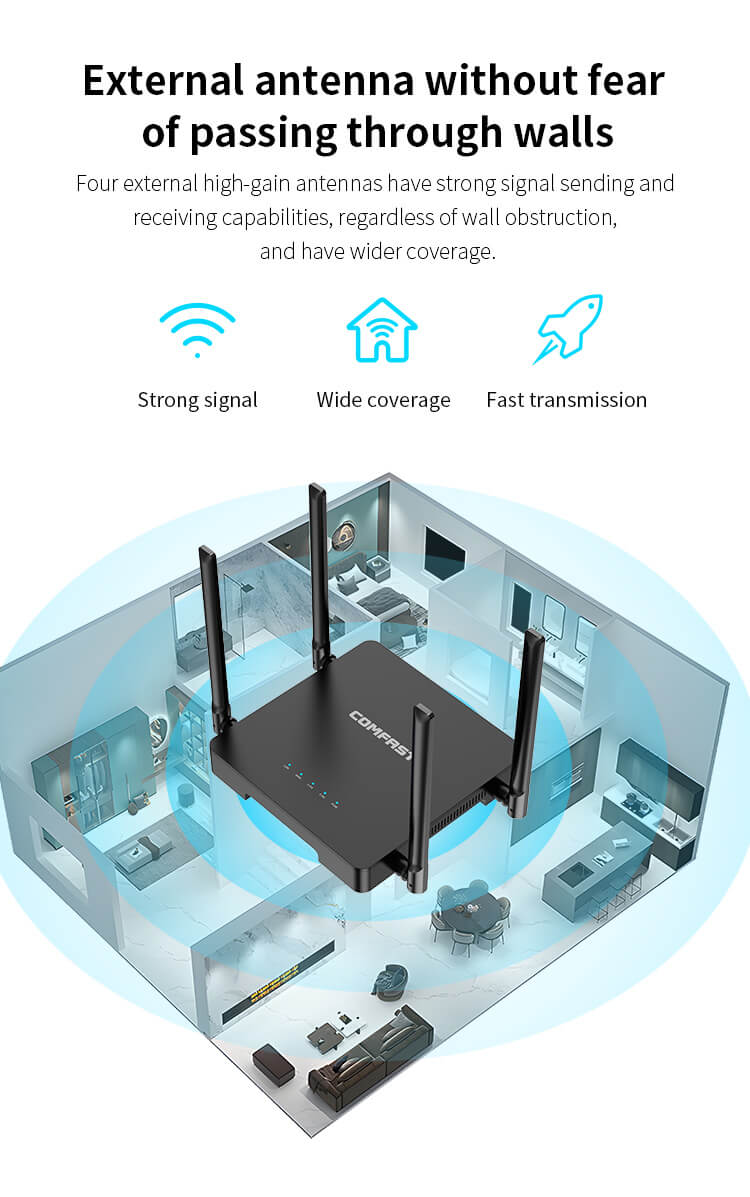

Antenna: External 4*5dBi Antennas
Wireless Standard:IEEE802.11a/b/g/n/ac

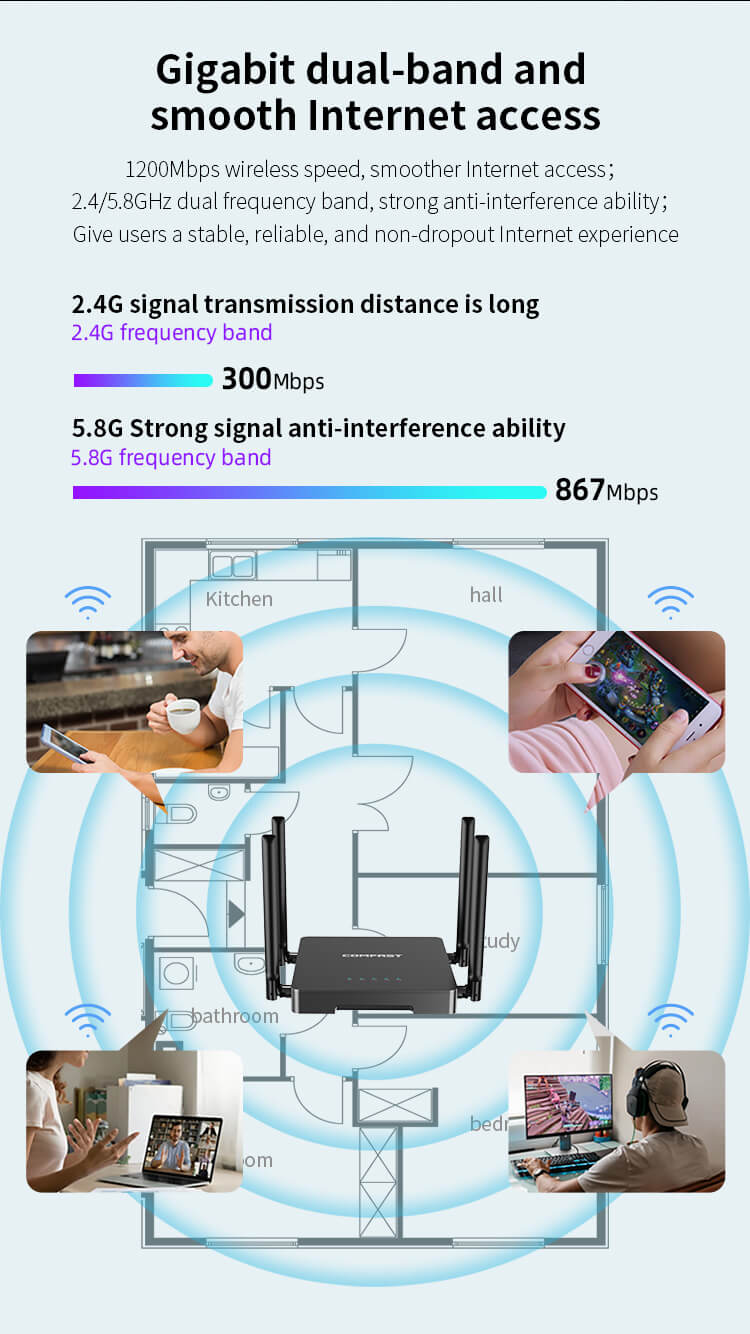

Transmission Rate: 2.4GHz:300Mbps , 5.8GHz：867Mbps
RF Parameters:
OutputPower(Max): 24dbm
Receiving Sensitivity (Min): -98dbm
Frequency: 802.11b/g/n: 2.412GHz-2.472GHz
802.11ac/an/a: 5.180GHz-5.825GHz

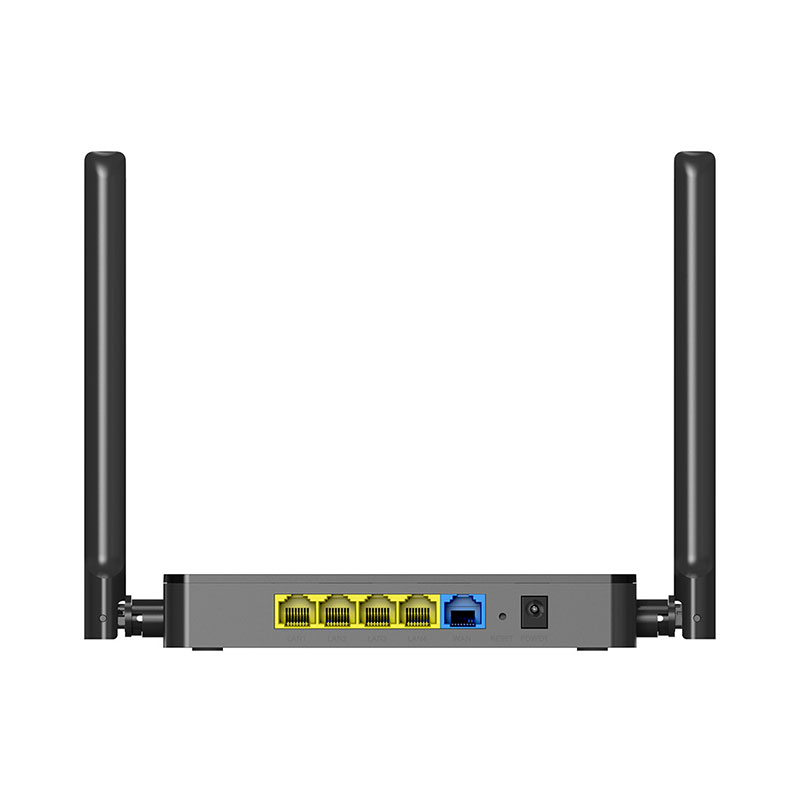

Physical Port:

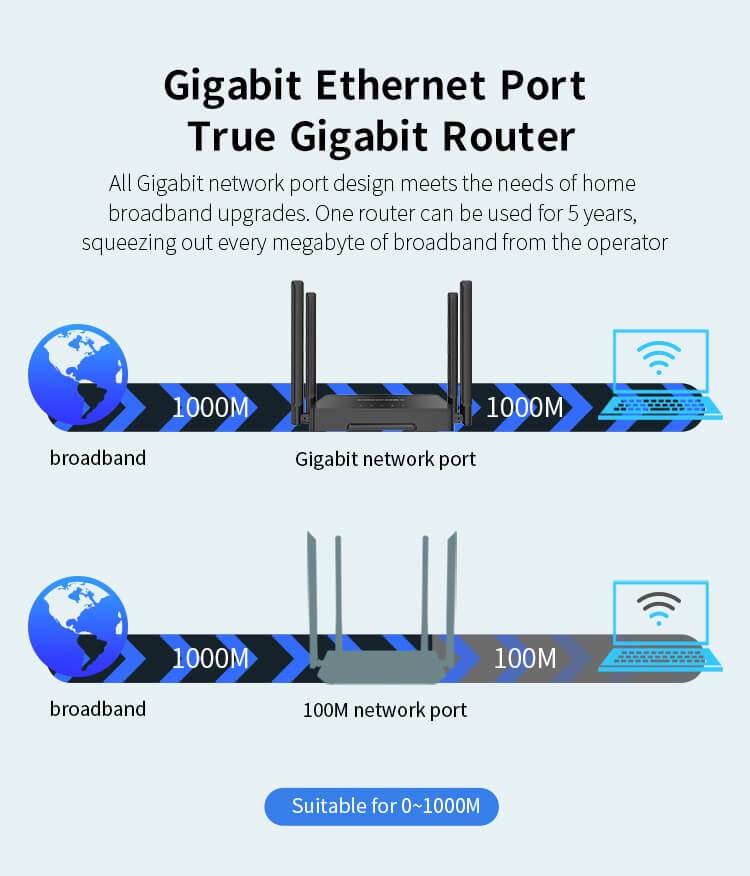

1*10/ 100/ 1000mbps adaptive WAN port
4*10/ 100/ 1000mbps adaptive LAN ports

Button: 1*WPS/RESET, 1 x DC Power Supply Interface
PowerSupply: DC Direct Current, 12V/DC 1A
Safety features: WPA-PSK/ WPA2-PSK
Physical Features: Plastic shell, Size: 160mm * 160mm * 168mm(Includes antenna length)

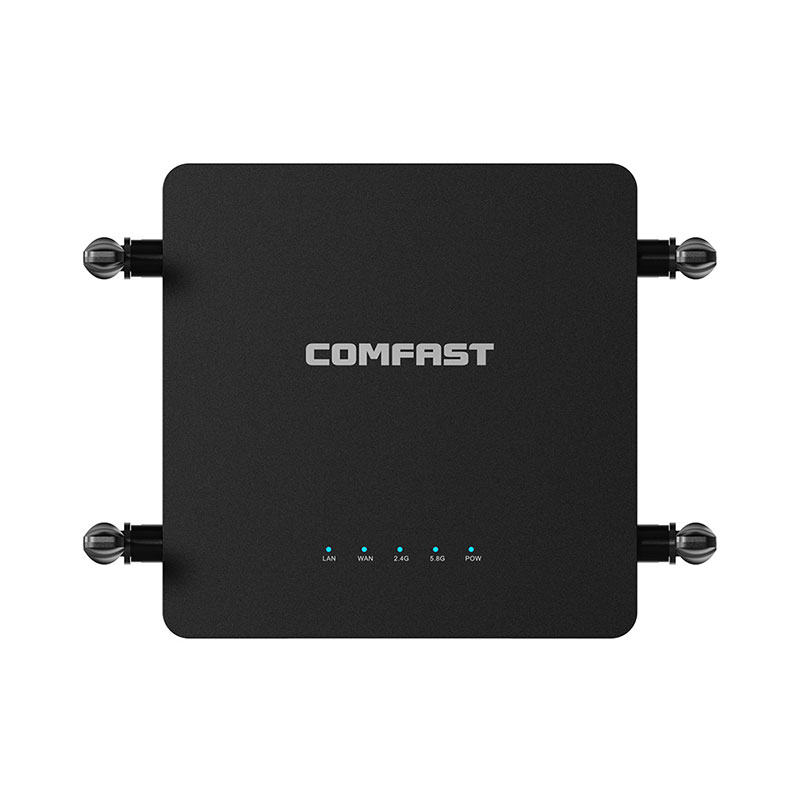

Indicator: LAN，WAN，2.4G，5.8G，POWER
Installation: Tabletop placement
Working Environment
Working Temperature: 0 ℃~40 ℃
Storage Temperature: -40 ℃~70 ℃
Working Humidity: 10%~90%RH Non-condensing
Storage Humidity: 5%~90%RH Non-condensing
