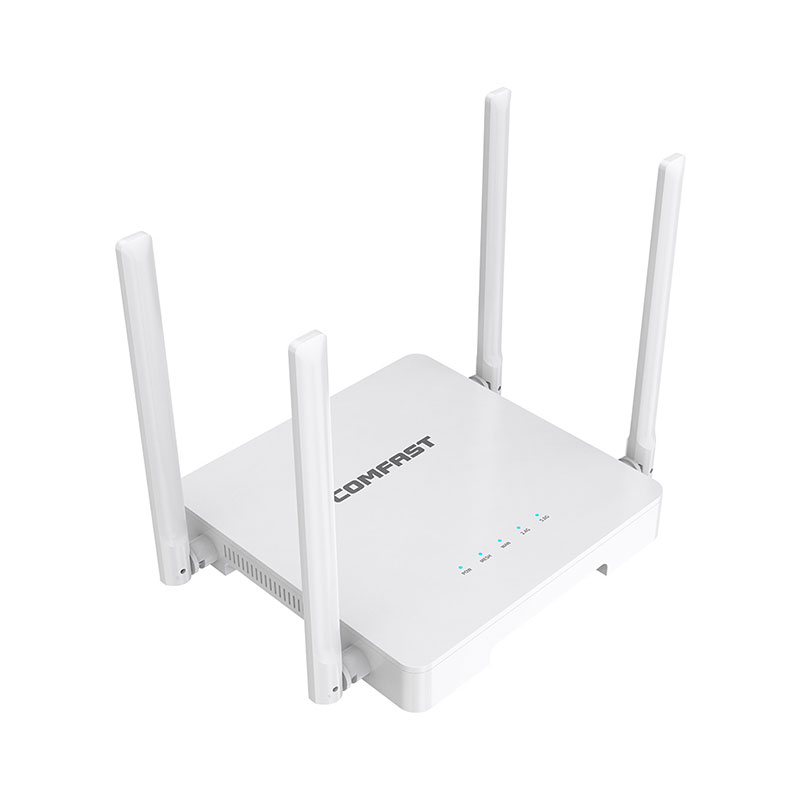

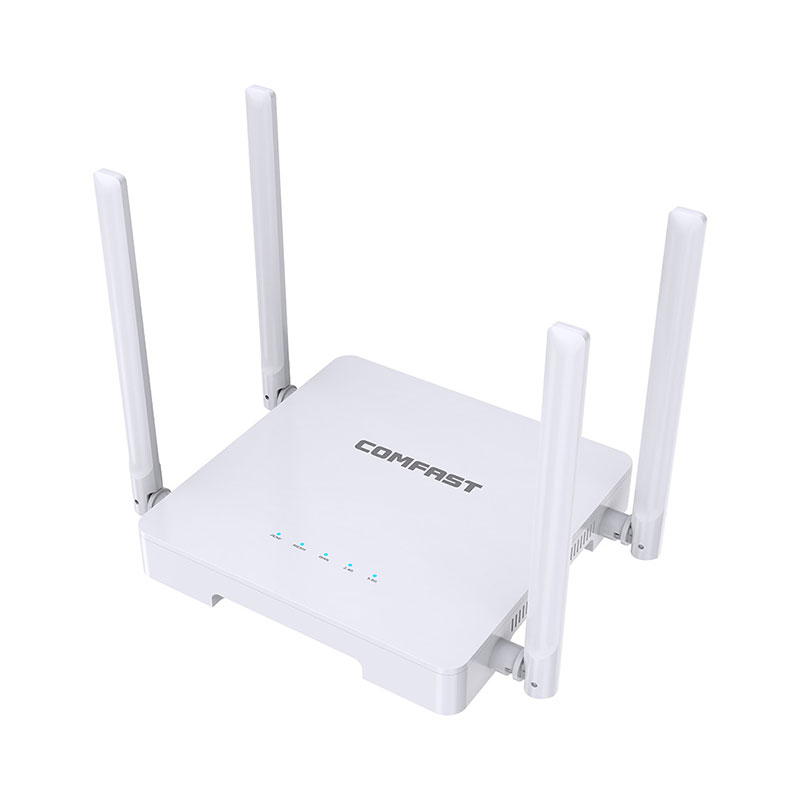

CF-WR630AX WiFi6 Wireless MESH Router

  • Model: CF-WR630AX
  • PowerSupply: DC Direct Current ; 12V/DC 1A
  • Safety features: WPA-PSK/WPA2-PSK/WPA3-SAE
  • Physical Features: Plastic shell, Size:160mm*160mm*168mm
  • Indicator light: POWER MESH WAN 2.4G 5.8G

Specifications:

  • Hardware Specification:
  • MT7981BA+MT7976CN+MT7531AE
  • DDR: 256MB
  • Flash: 128MB
  • Antenna: External 2*2.4GHZ(5dBi) + 3*5GHZ(5dBi) Antennas
  • Wireless Standard: IEEE802.11a/b/g/n/ac/ax
  • Wireless Rate: 2.4GHz:573Mbps, 5.8GHz: 2402Mbps
  • RF Parameters:
  • OutputPower(Max): 20dBm
  • Receiver Sensitivity(Min): -96dBm
  • Wireless Channel:2.4GHz：1~13
  • 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

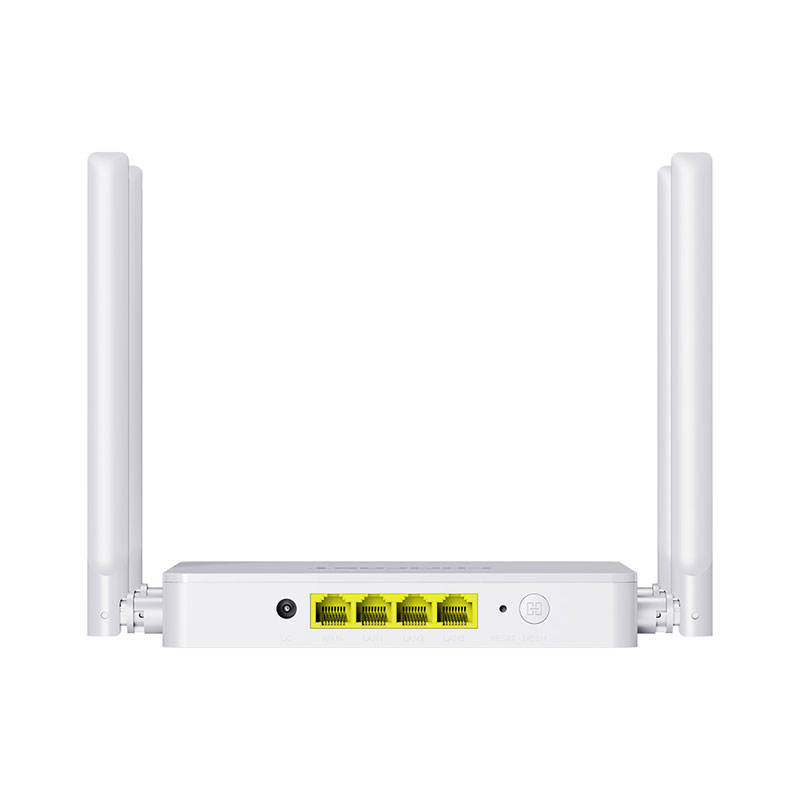

  • Physical Port
  • 1*10/100/1000mbps adaptive WAN port
  • 3*10/100/1000mbps adaptive LAN ports
  • Button: 1*WPS/RESET , 1*MESH , 1 * DC Power Supply Interface
  • PowerSupply: DC Direct Current ; 12V/DC 1A
  • Safety features: WPA-PSK/WPA2-PSK/WPA3-SAE
  • Physical Features: Plastic shell,
  • Size:160mm*160mm*168mm
  • Indicator light: POWER MESH WAN 2.4G 5.8G
  • Working Environment
  • Working Temperature: 0 ℃~40 ℃
  • Storage Temperature: -40 ℃~70 ℃
  • Working Humidity: 10%~90%RH Non-condensing
  • Storage Humidity: 5%~90%RH Non-condensing
