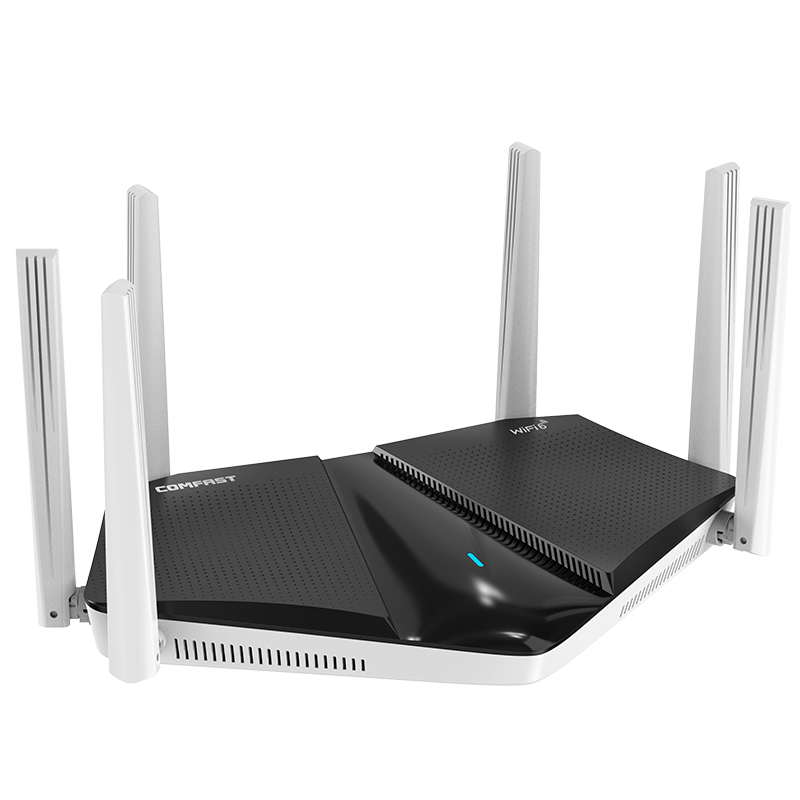

CF-WR633AX WiFi6 Wireless MESH Router

Model: CF-WR633AX
Hardware Specification: MT7981A+MT7976DA+MT7531AE; DDR:256MB; Flash:128MB

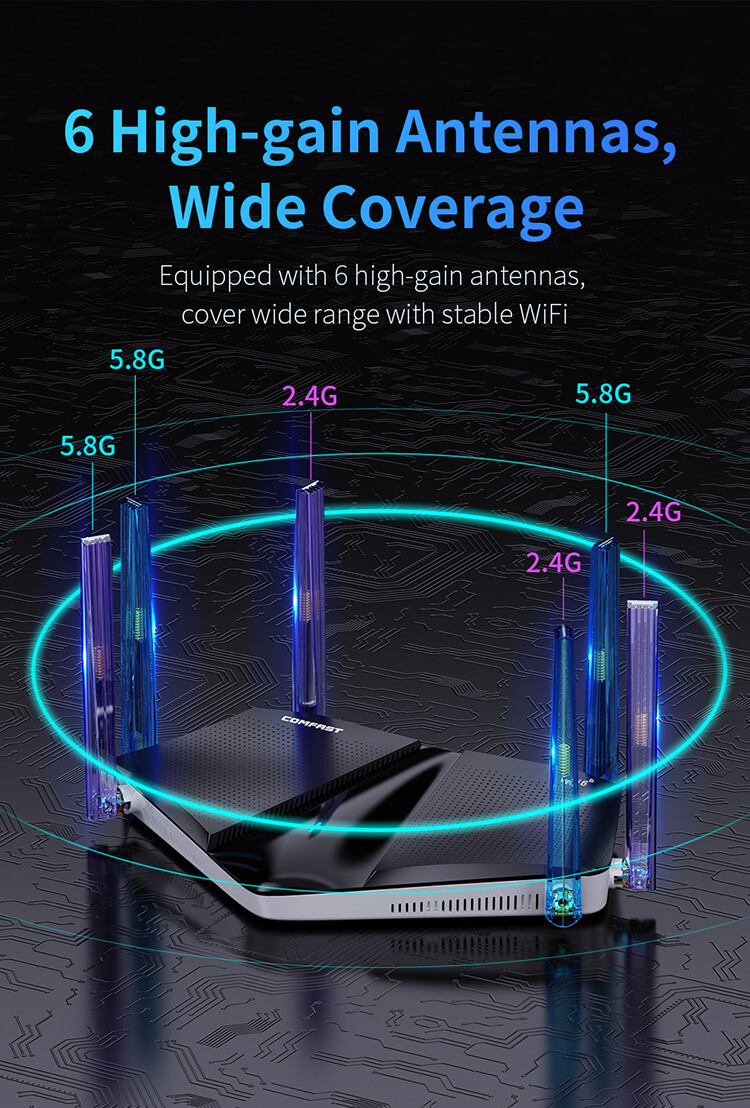

Antenna: External Antennas(2.4GHz: 4dbi; 5.8GHz:5dbi)
Wireless Standard: IEEE802.11a/b/g/n/ac/ax

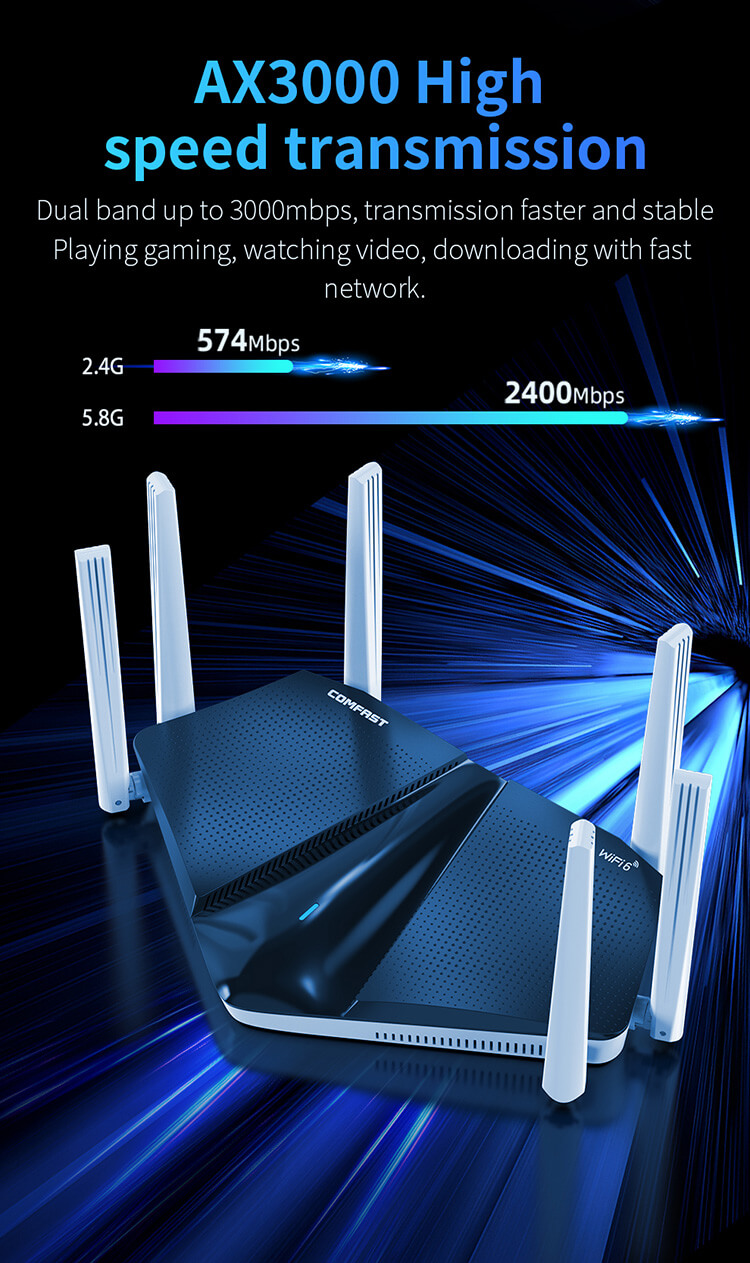

Wireless Rate: 2.4GHz:574Mbps, 5.8GHz:2400Mbps

Description

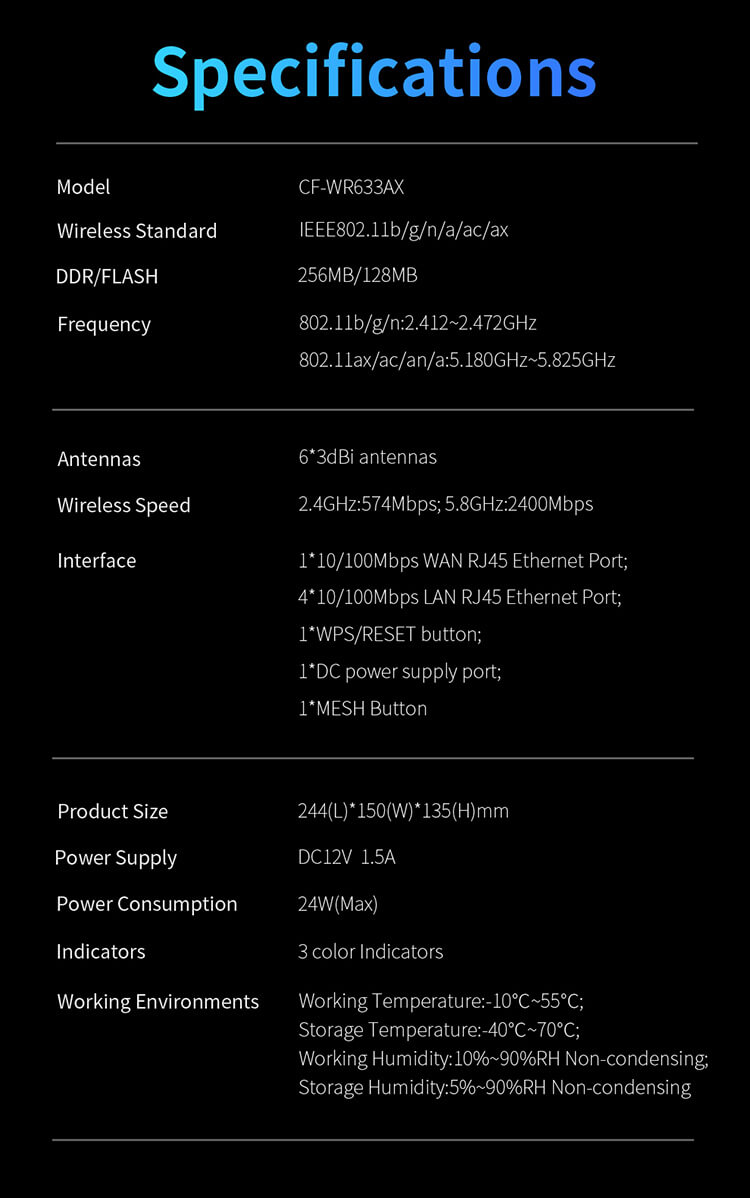

Specifications:

Hardware Specification: MT7981A +MT7976DA +MT7531AE, DDR: 256MB; Flash: 128MB
MT7981BA+MT7976CN+MT7531AE
Antenna: External Antennas(2.4GHz: 4dbi; 5.8GHz:5dbi)
Wireless Standard: IEEE802.11a/b/g/n/ac/ax
Wireless Rate: 2.4GHz ：574Mbps ; 5.8GHz: 2400Mbps
RF parameters:
OutputPower(Max): 25dbm;
ReceivingSensitivity(Min): -96dbm;
Frequency:802.11b/g/n: 2.412GHz-2.472GHz；
802.11ax/ac/an/a: 5.180GHz-5.825GHz
PowerSupply: Support 12V 1.5A POE power supply
Power consumption: 24W
MTBF: >250000H

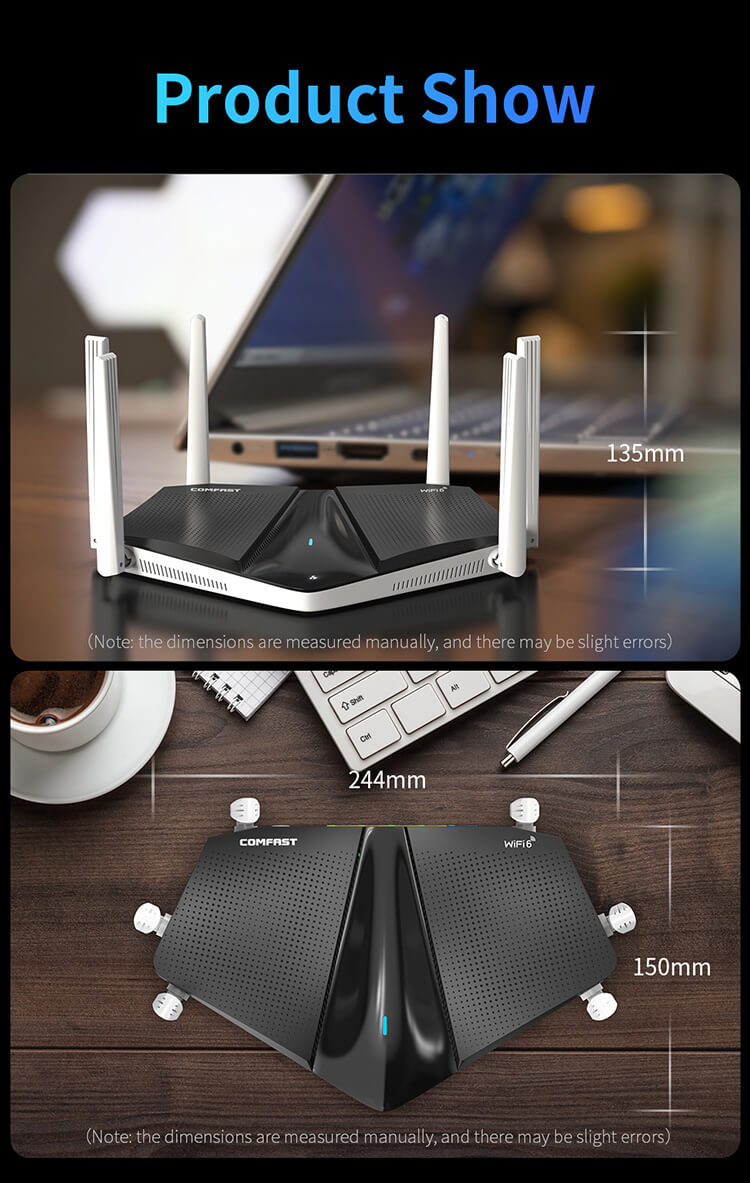

Physical Features: Plastic shell, Size: 243.89mm * 149.95mm * 135mm

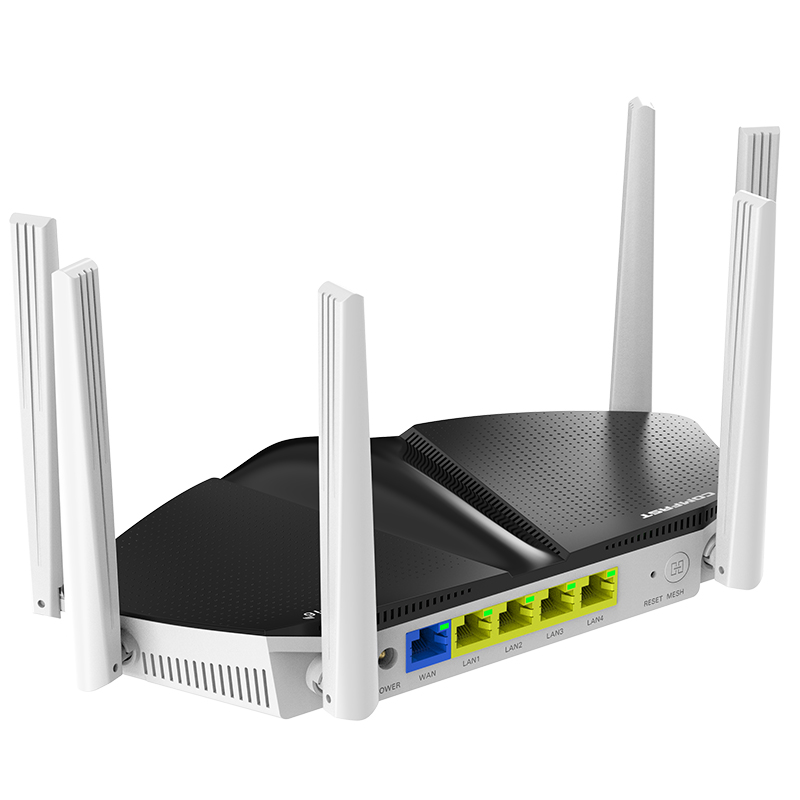

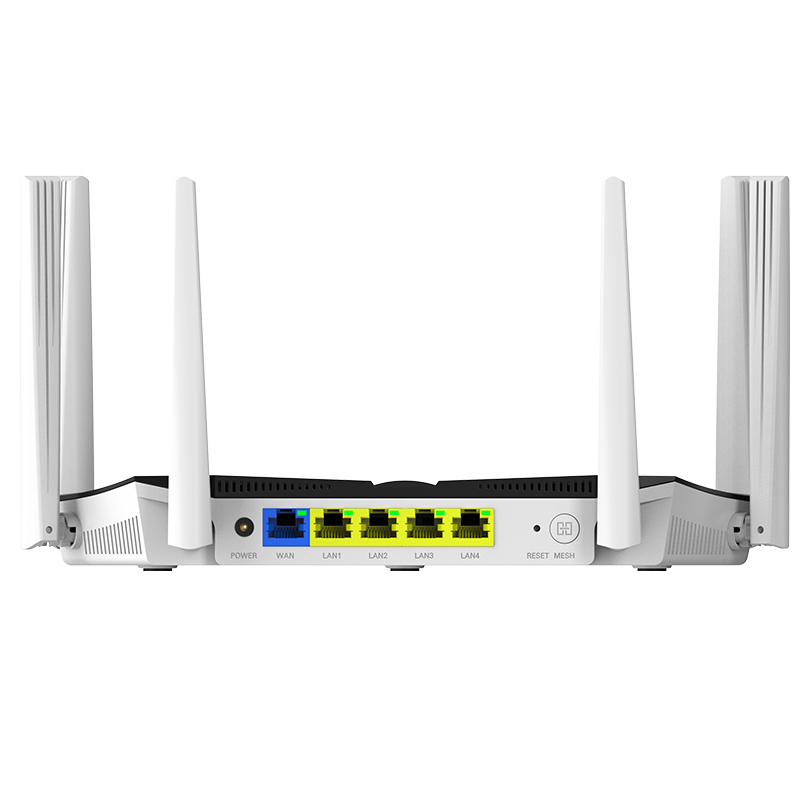

PhysicalPorts

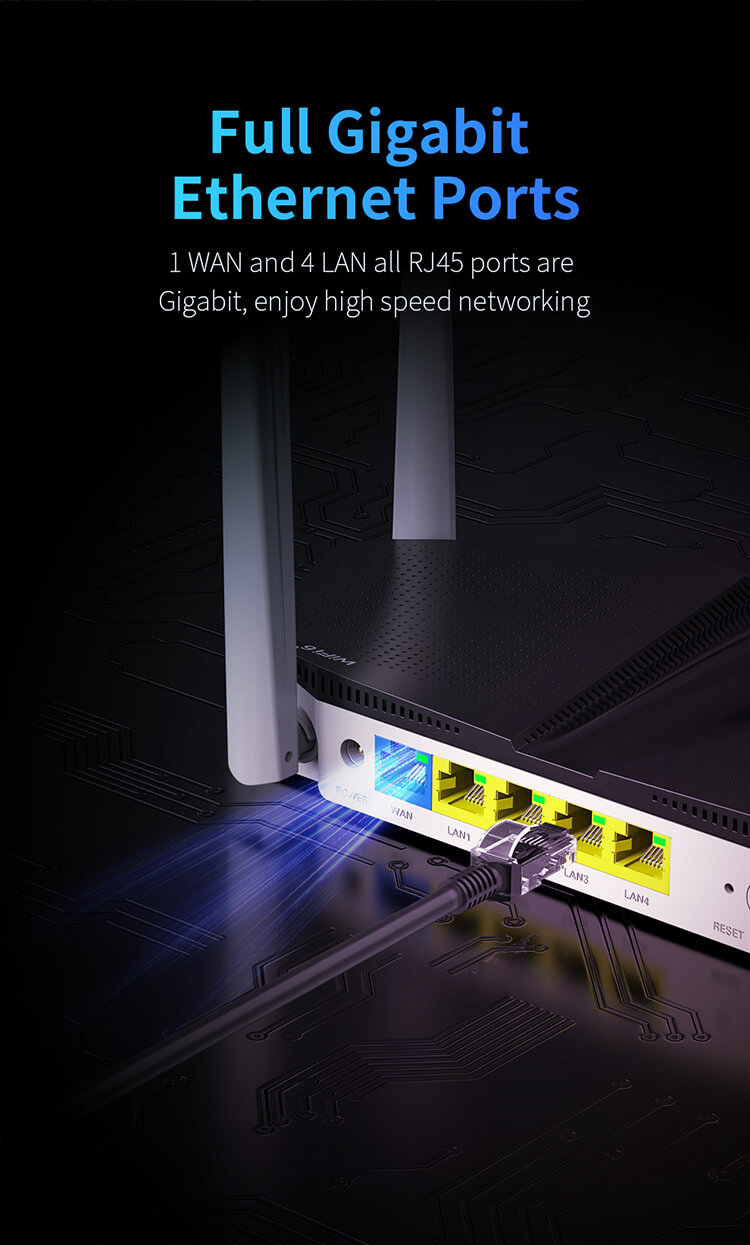

110/100/1000Mbps RJ45 WAN Ethernet port; 410/100/1000Mbps RJ45 LAN Ethernet ports;
1WPS/RESET Button, 1MESH Button；
1 x DC Power Supply Interface

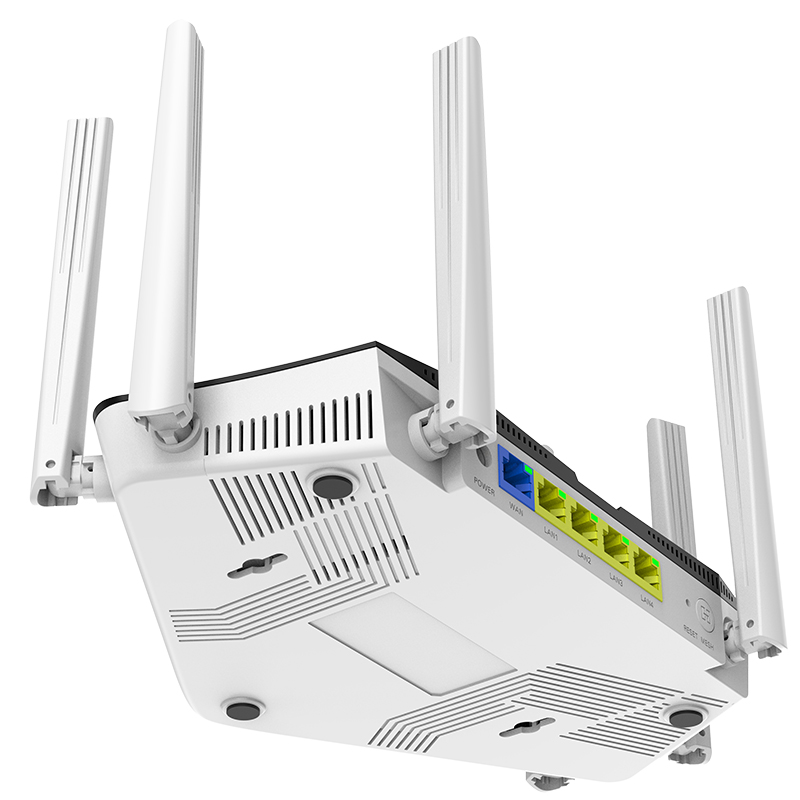

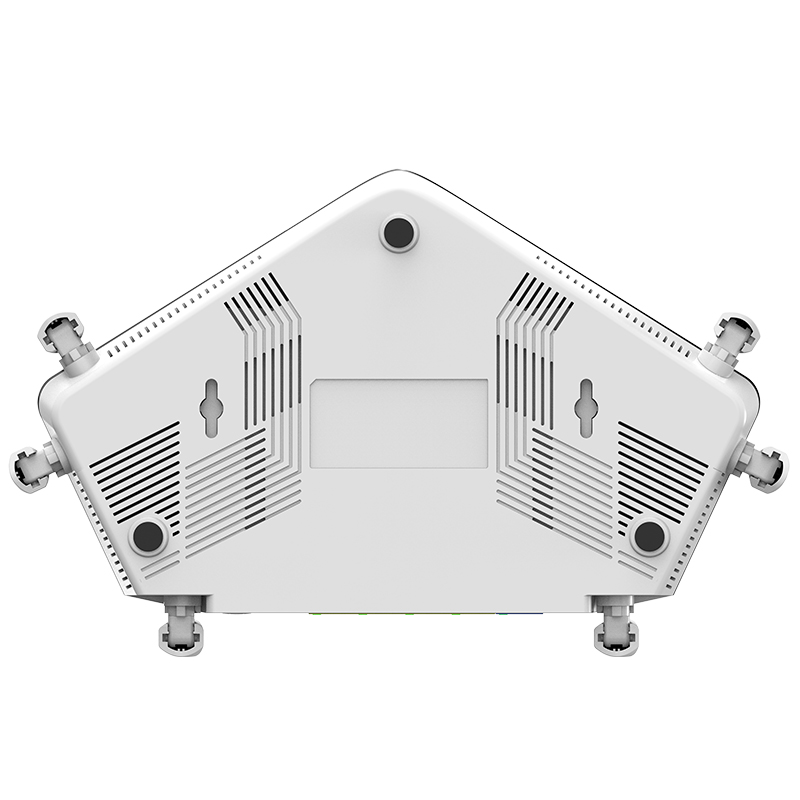

Installation: Tabletop placement and Wall mounted
Working Environment
Working Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%RH Non-condensing
Storage Humidity: 5%~90%RH Non-condensing
