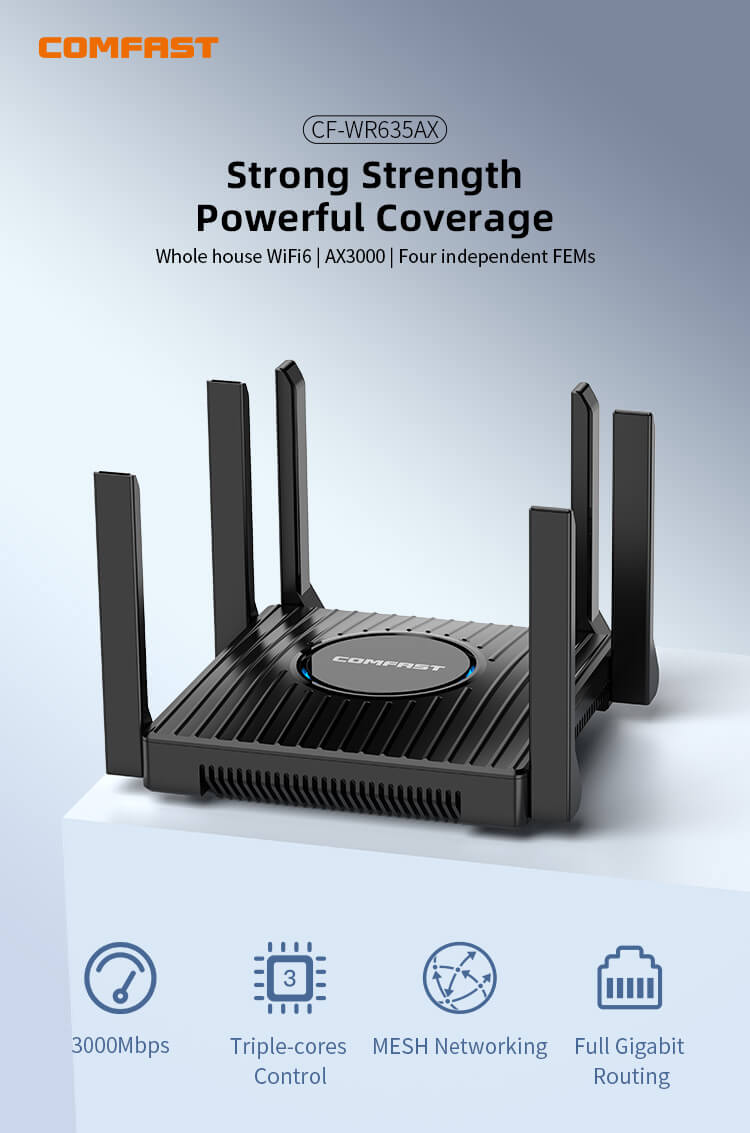

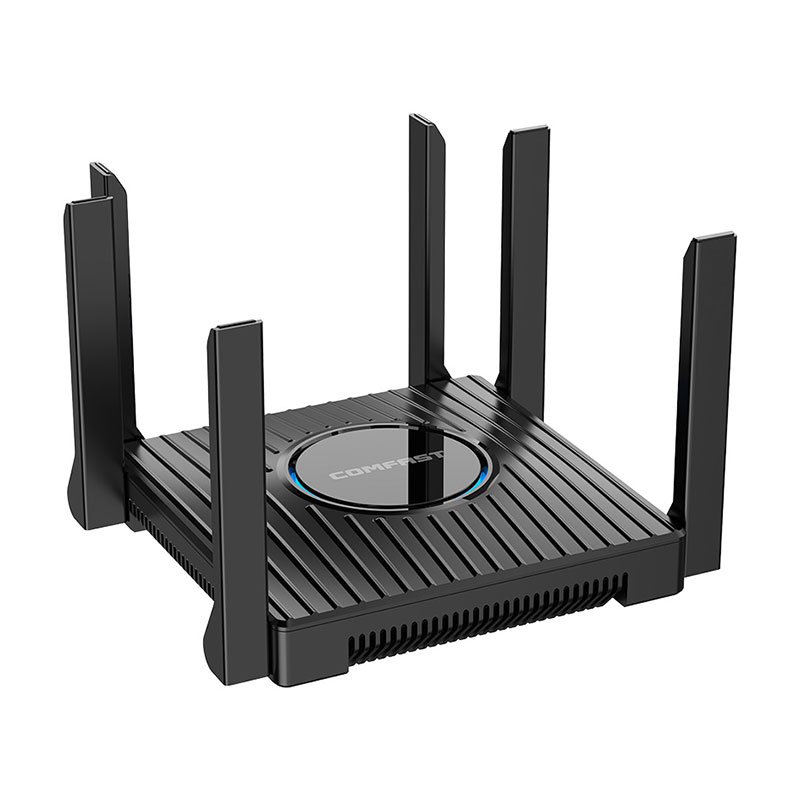

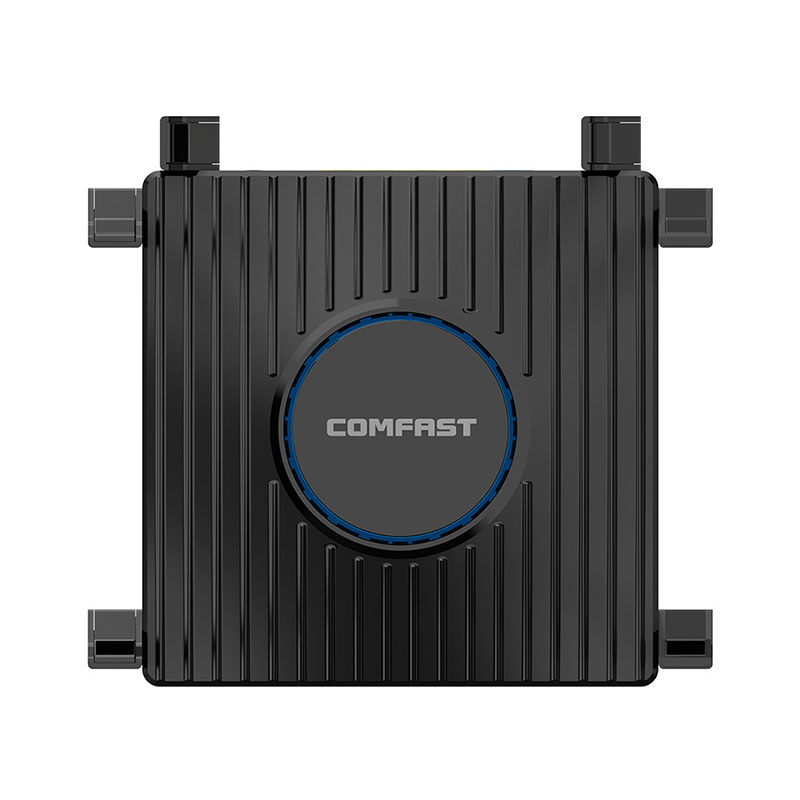

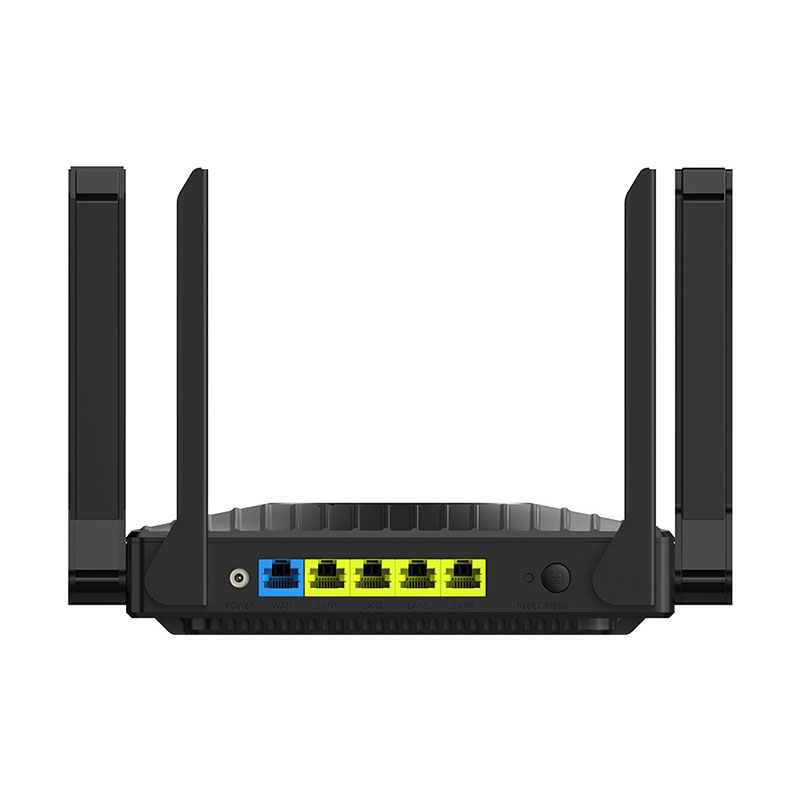

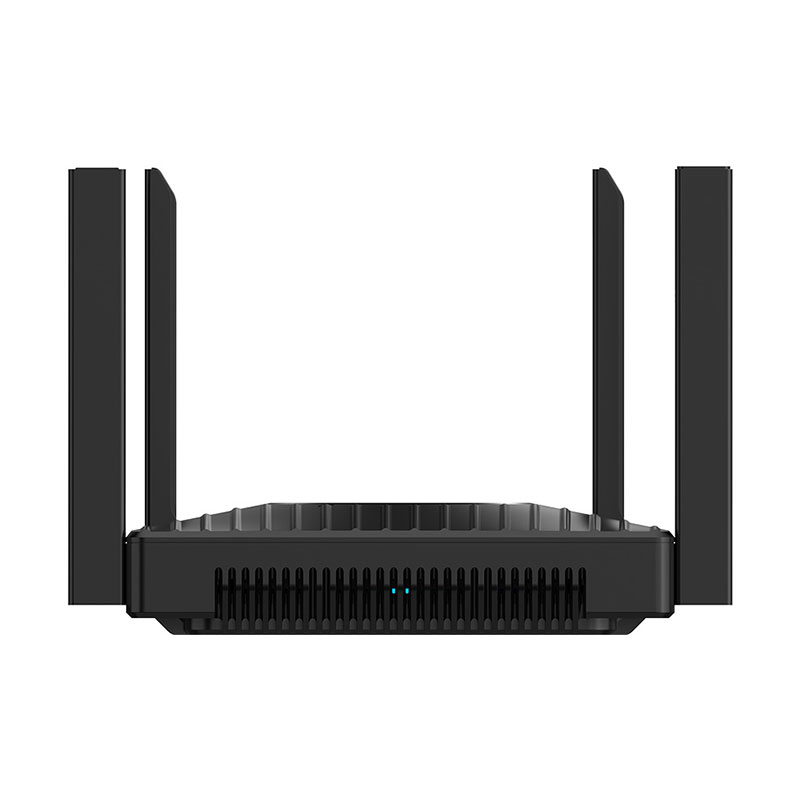

CF-WR635AX WiFi6 Wireless MESH Router

Model: CF-WR635AX
Hardware Specification: IPQ5018+ QCN6102+ QCA8337, DDR:512MB; Flash:128MB
Antenna: External 6*5dBi Antennas
Wireless Standard: IEEE802.11a/b/g/n/ac/ax

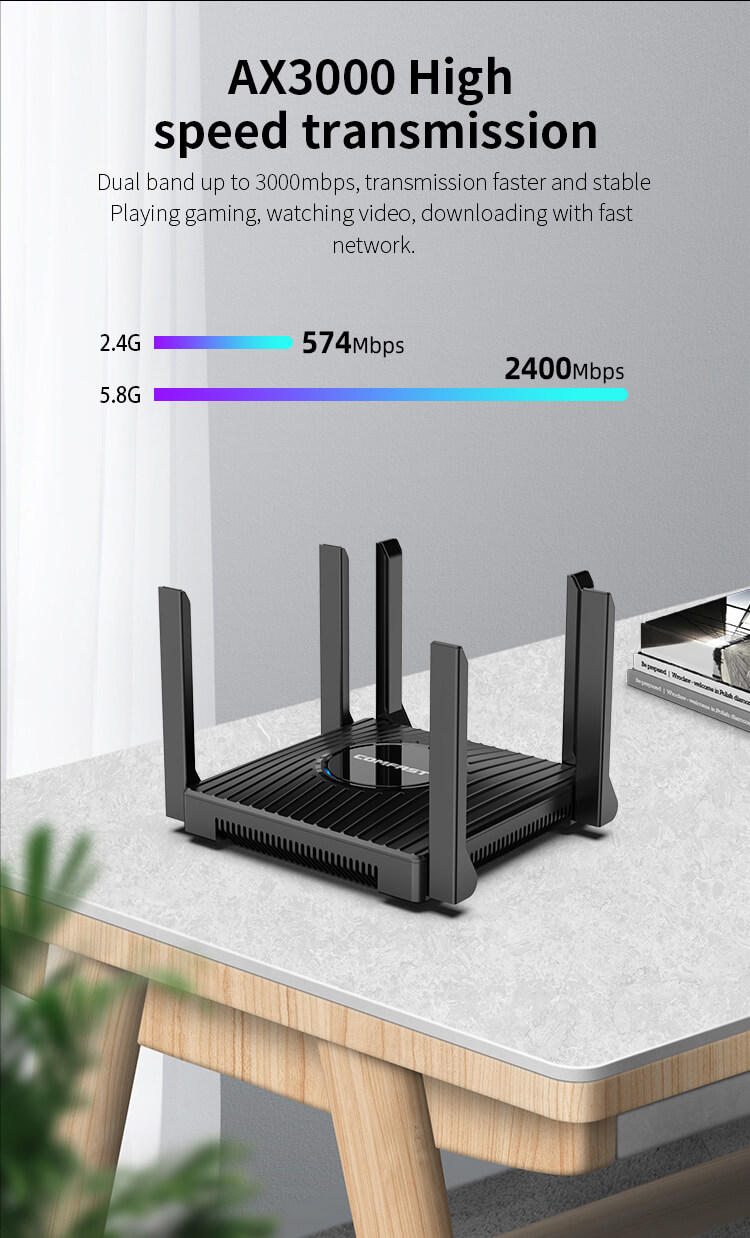

Wireless Rate: 2.4GHz :574Mbps; 5.8GHz:2402Mbps

Description

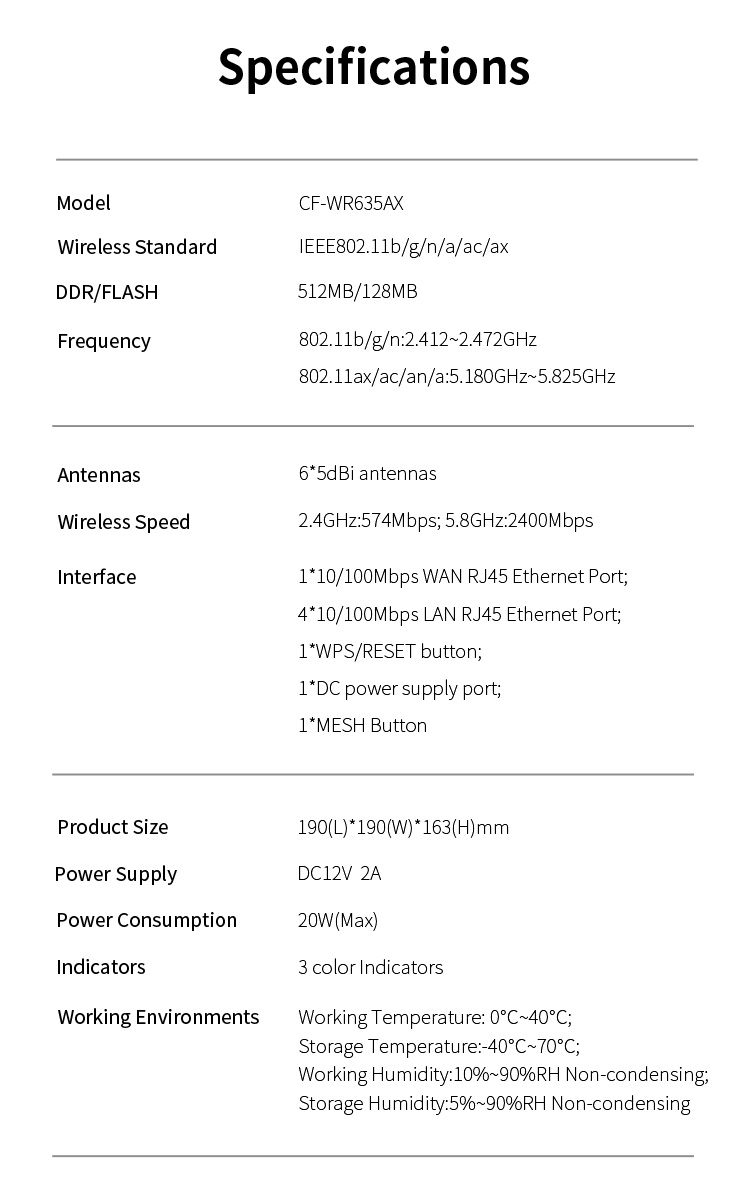

Specifications:

Hardware Specification: IPQ5018+ QCN6102+ QCA8337, DDR:512MB; Flash:128MB
MT7981BA+MT7976CN+MT7531AE

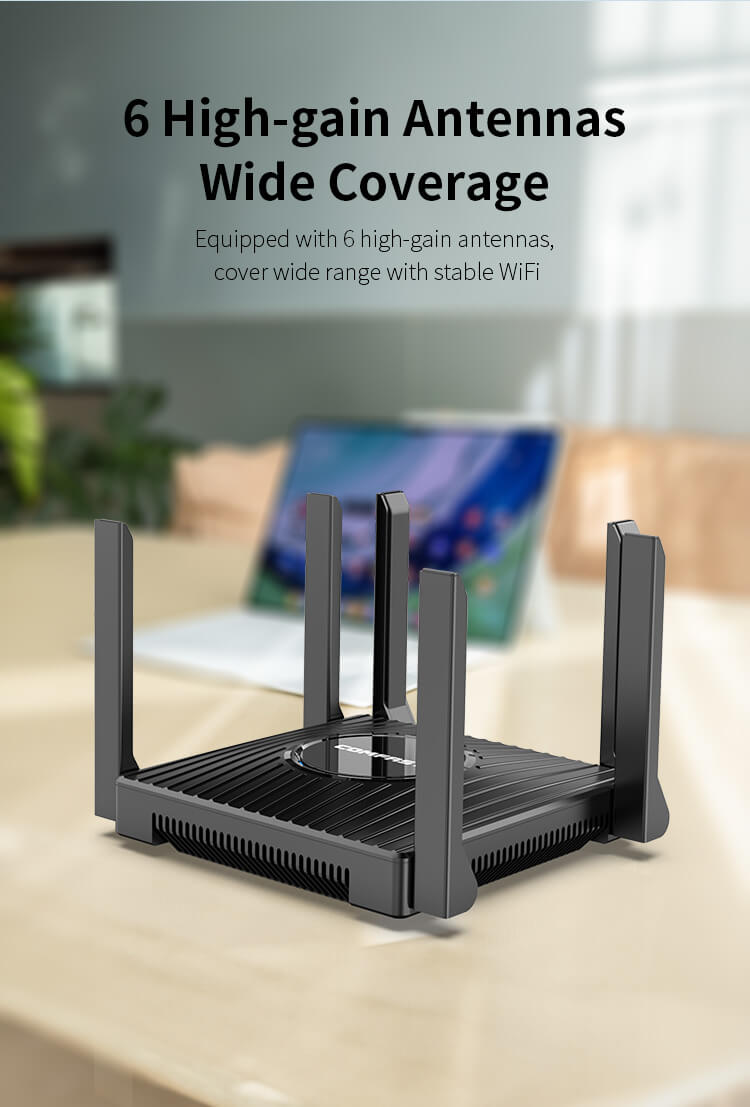

Antenna: External 6*5dBi Antennas
Wireless Standard: IEEE802.11a/b/g/n/ac/ax
Wireless Rate: 2.4GHz :574Mbps; 5.8GHz:2402Mbps
RF parameters:
OutputPower(Max): 26dbm;
ReceivingSensitivity(Min): -96dbm;
Frequency:802.11b/g/n: 2.412GHz-2.472GHz；
802.11ax/ac/an/a: 5.180GHz-5.825GHz

PowerSupply: Support 12V 1.5A POE power supply
Power consumption: 20W
MTBF: >250000H
Physical Features: Plastic shell, Size: 190mm * 190mm * 162.51mm (Includes antenna length)
Installation: Tabletop placement
Working Environment
Working Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%RH Non-condensing
Storage Humidity: 5%~90%RH Non-condensing
